Electric Conversion Kit For Bicycle

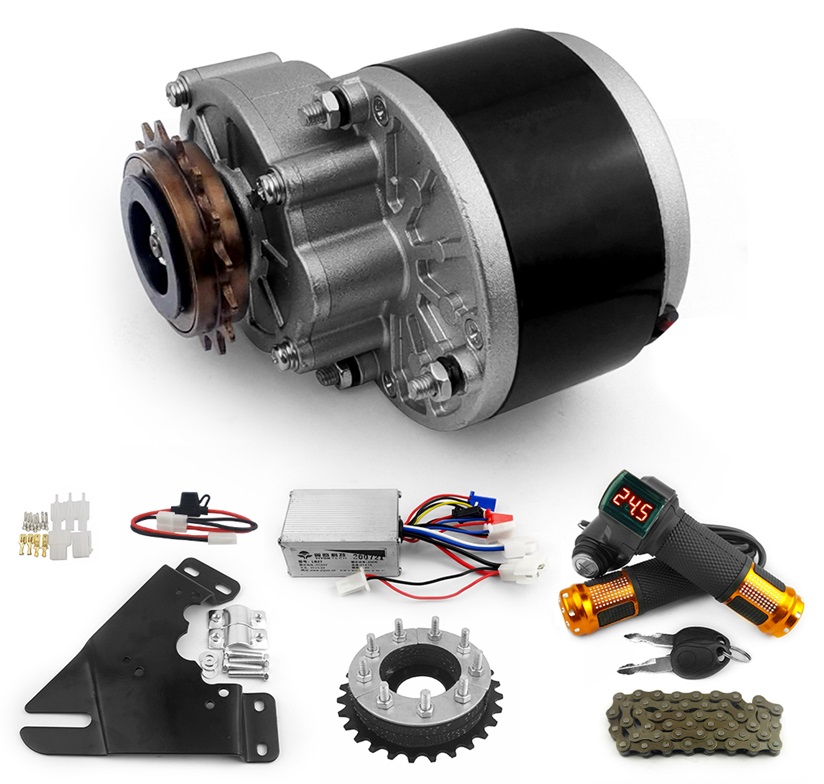

Left-Side Drive Electric Bike Conversion Kit

1). This kit is for the bike that using the V brake.
For disc brake and coaster brake, we have other kits, please contact us for the matched kit.
———-
2). The motor bracket maybe not fit your bike frame, this you need to modify the bracket by yourself, please confirm this.
Or please contact us for a better solution.
———-
3). This kit just for people riding bike easier, it is not fast (26-inch bike can run about 20km/h), and I recommend pedaling with the motor power, this can ride longer.
———-
4). The difference between 24V and 36V is the working current, if you want to ride longer, I recommend 36V kit.
———-
5). This kit does not include battery, you need to buy the battery separately, the lead acid battery and the lithium battery are all ok, and the battery capacity I recommend 10Ah to 20Ah.
———-
6). This controller comes with 1 fuse wire and 3 fuses, if 1 fuse is burnt, you’d better note what makes it burnt and avoid this happen again, or please feel free to contact me for help.

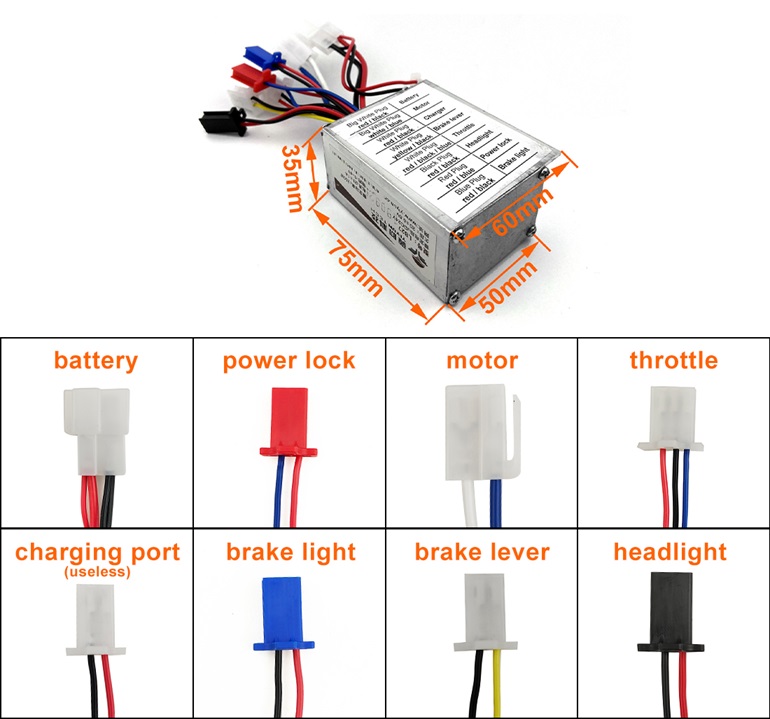

250W brushed controller:

Rated voltage: 24V
Rated watt: 250W
Rated current: 21A
Lowest working voltage: 20V

Optional functions

Charging port: to a lead acid battery charger, do not recommend.

Brake light: to a light, this light will be on when the brake is working.

Brake lever: to an electric brake lever, it can cut off the motor power.

Headlight: a power source of the electric part like light, the light should have a switch.

Wired throttle:

It can be a pedal throttle, a handle throttle, or a thumb throttle, this depends on your project.

The mounting hole diameter is 22mm.

The throttle can be with the key switch or button switch, and the battery voltmeter or indicator lights.

The motor speed can be variable with the throttle.

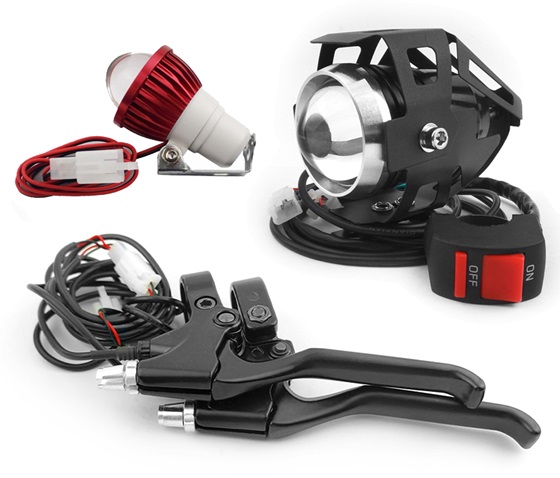

Optional parts:

Brake light: red light, this light will be on when the brake is working.

Brake lever: it can cut off the motor power when pull the lever.

Headlight: this light is with a switch.

Different Motor Power Options

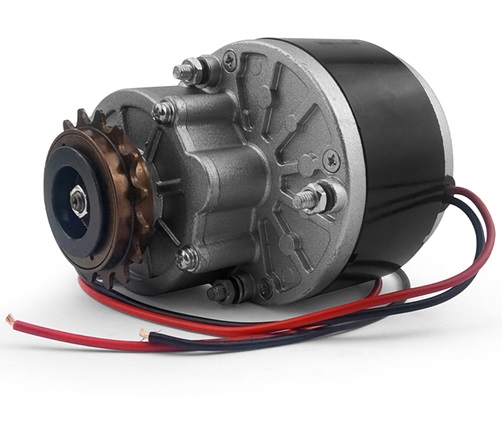

250W side-drive motor

Model:
Type:
Power:
Voltage:
Current:
Gearratio:
Speed:
Torque:

MY1016Z2
Brushed
250W
24V/36V
9~13.4A
1 : 9.78
300 RPM
7.8 N.m

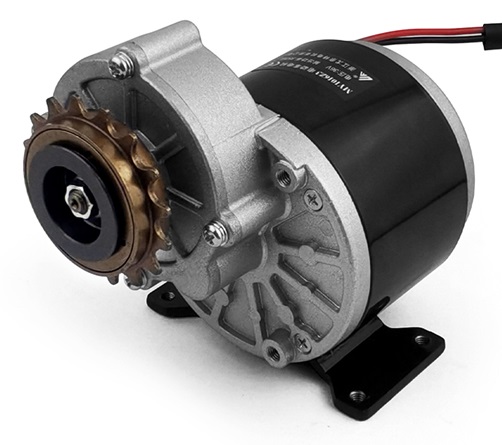

350W side-drive motor

Model:
Type:
Power:
Voltage:
Current:
Gearratio:
Speed:
Torque:

MY1016Z3
Brushed
350W
24V/36V
12.5~18.7A
1 : 9.78
300 RPM
10.8 N.m

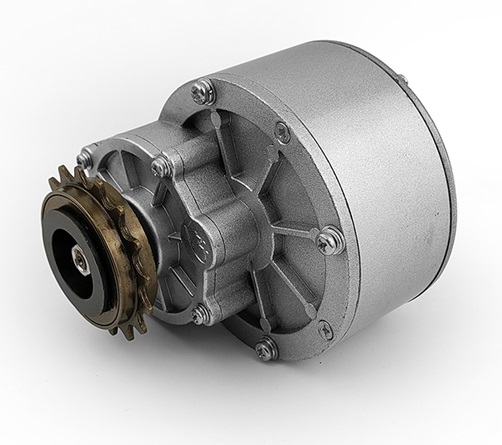

450W side-drive motor

Model:
Type:
Power:
Voltage:
Current:
Gearratio:
Speed:
Torque:

MY1018
Brushed
450W
24V/36V
16.5~24.7A
1 : 7.18
420 RPM
10.3 N.m

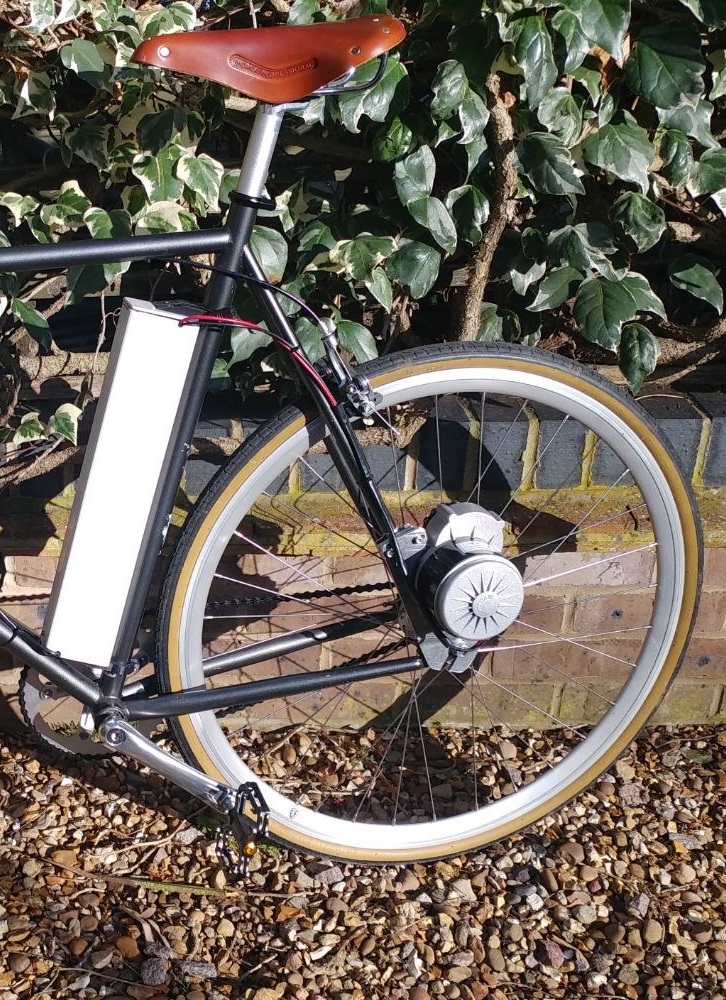

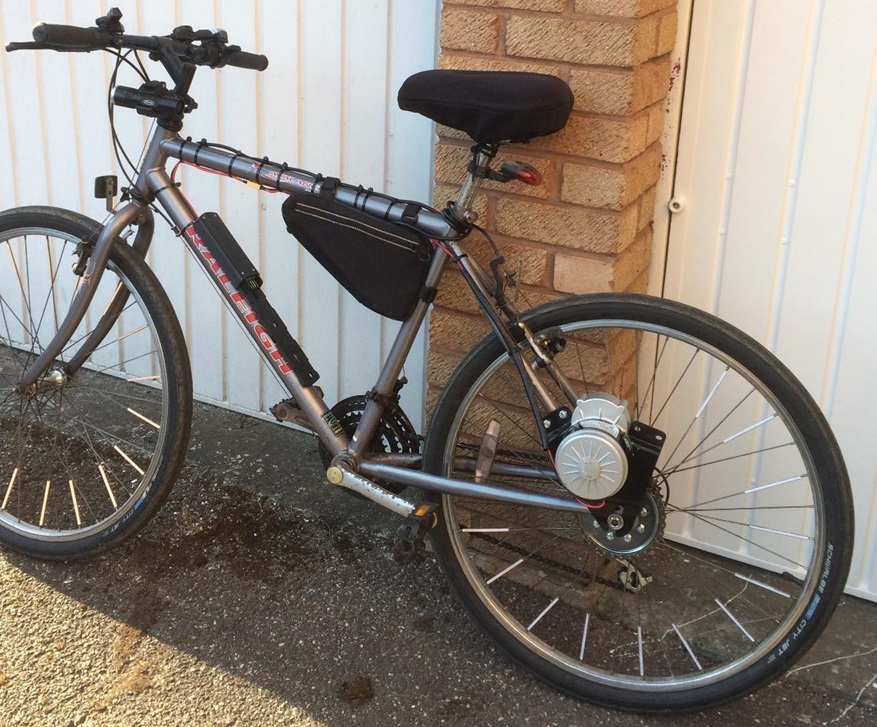

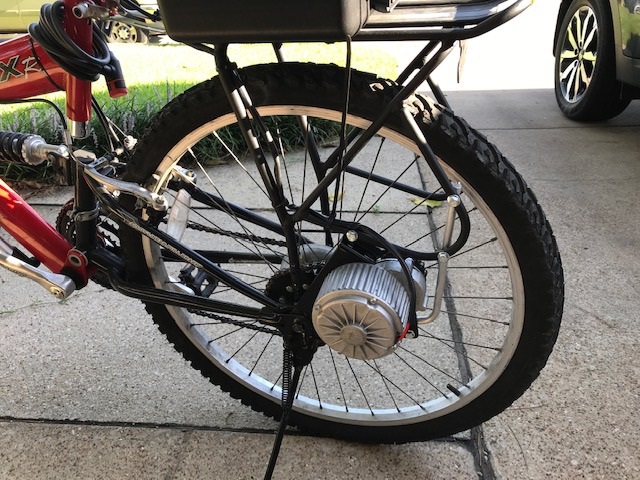

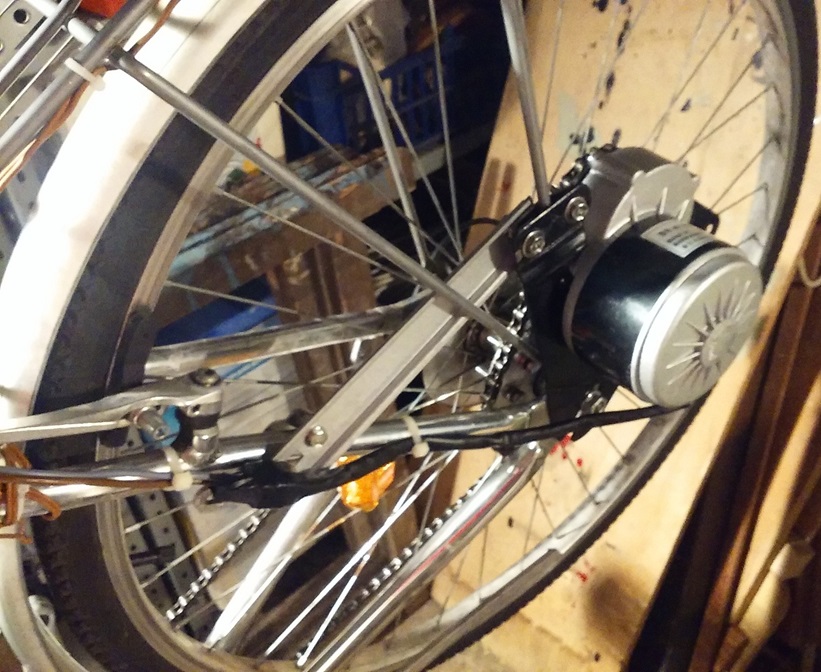

Mounted for reference:

Left-Side Drive Kit For Disc Brake Bicycle

This kit is similar as the V brake kit, the difference is the big sprocket mounting method.

Right-Side Drive Kit For Single-Speed Bicycle

This kit is for right-side drive, usually we use it on the single-speed freewheel bicycle.

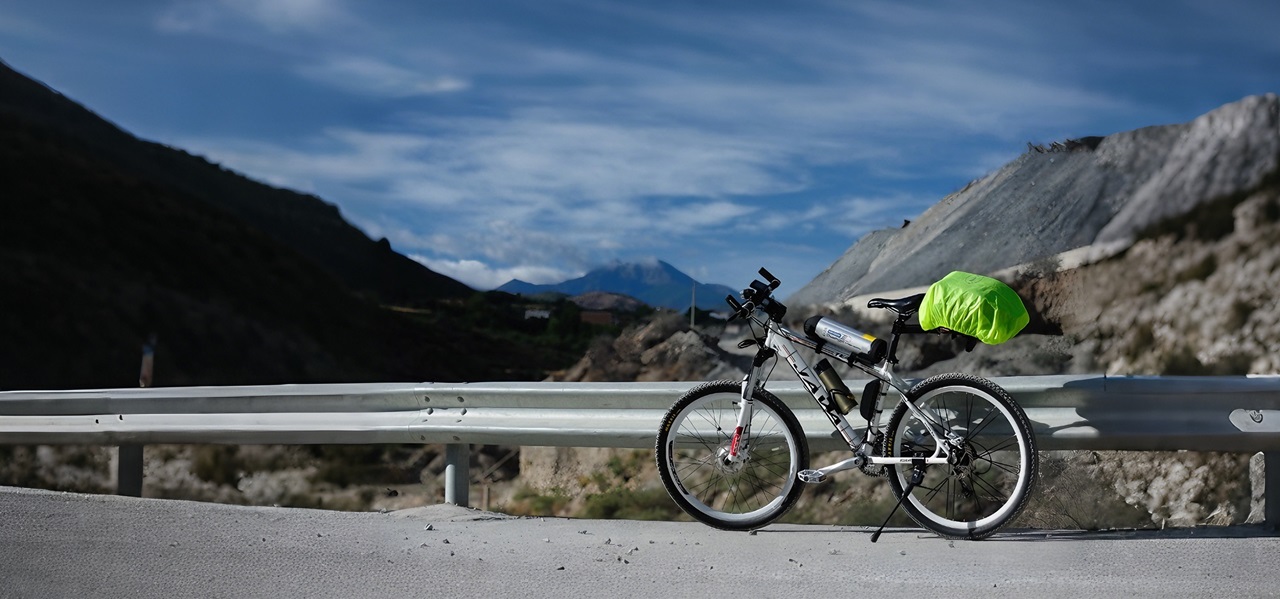

Hub Motor Drive Electric Bike Conversion Kit

1). This kit is for the bicycle front wheel, you need to assemble this hub motor to your wheel rim with the spokes.
———-
2). This motor is a 250W brushless geared hub motor, if on a 26-inch bicycle wheel, it can run about 35km/h.
———-
3). The difference between the 24V and 36V is the working current, if you want to ride longer, I recommend the 36V kit.
———-
4). This kit does not include battery, you need to buy the battery separately, the lead acid battery and the lithium battery are all ok, and the battery capacity I recommend 10Ah and 20Ah.
———-
5). This motor has a freewheel device inside, it can drive forward only but can not drive backward.
———-
6). The motor color can be silver.

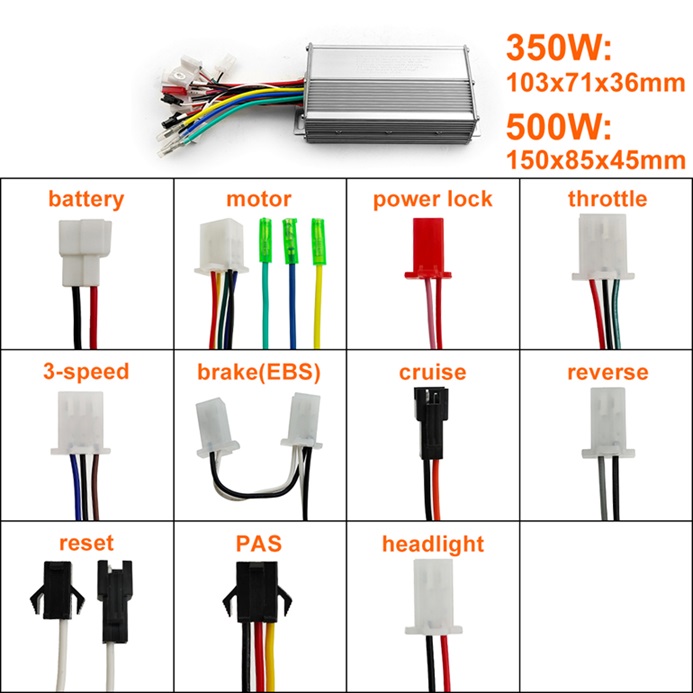

Brushless controller:

Rated voltage: 24V / 36V / 48V
Rated watt: 350W
Rated current: 15A
Lowest working voltage: 21V

Optional functions

3-speed: to a 3-speed switch, then the motor’s max speed will be 50%, 75%, and 100%.

Brake: to an electric brake, it will cut off the motor power.

Cruise: to a switch, it will keep the motor run in a speed and you can release the throttle.

Reverse(useless): to a switch, it can control the motor rotation direction.

Reset: it is for pairing the motor and controller, if they are working normally, please keep this wire disconnected.

PAS: to a pedal assist sensor, so you can control the motor speed with that sensor, the throttle handle will not be necessary.

Headlight: it is just a power source for the electric parts like the light, horn, etc, its voltage is the same as the battery voltage.

Wired throttle:

It can be a pedal throttle, a key throttle handle, or a thumb throttle, this depends on your project.

The mounting hole diameter is 22mm.

The throttle can be with the key switch or button switch, and the battery voltmeter or indicator lights.

The motor speed can be variable with the throttle.

Optional parts:

PAS: pedal assist sensor, it can control the motor speed.

Brake lever: it can cut off the motor power when pull the lever.

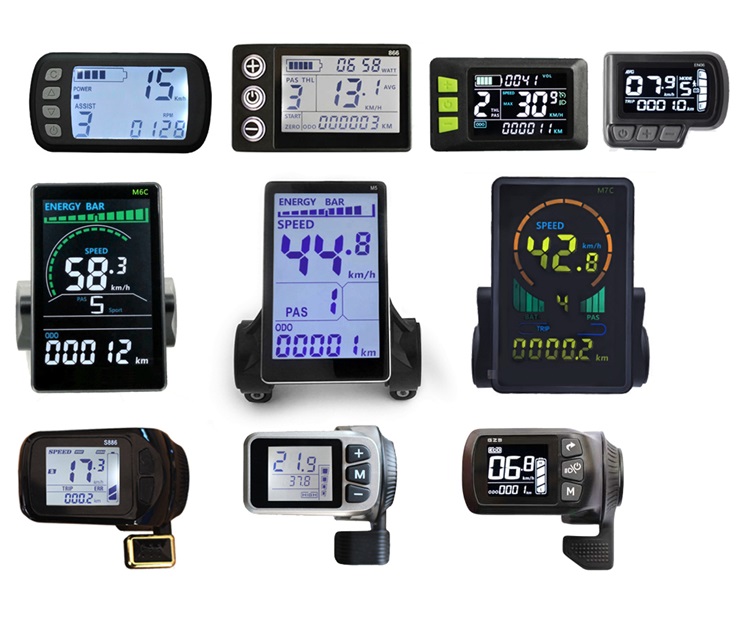

LCD display (need matched controller): many models, can show the speed and limit the motor’s max speed.

Brushless Hub Motor options

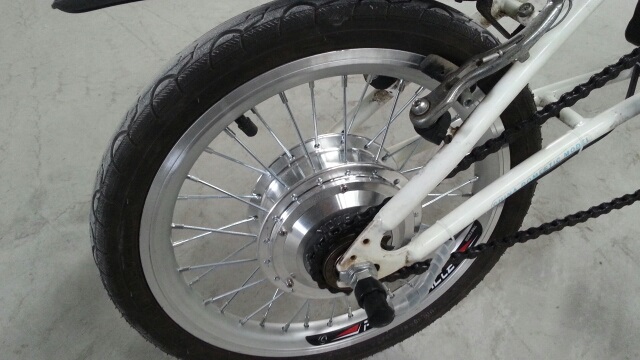

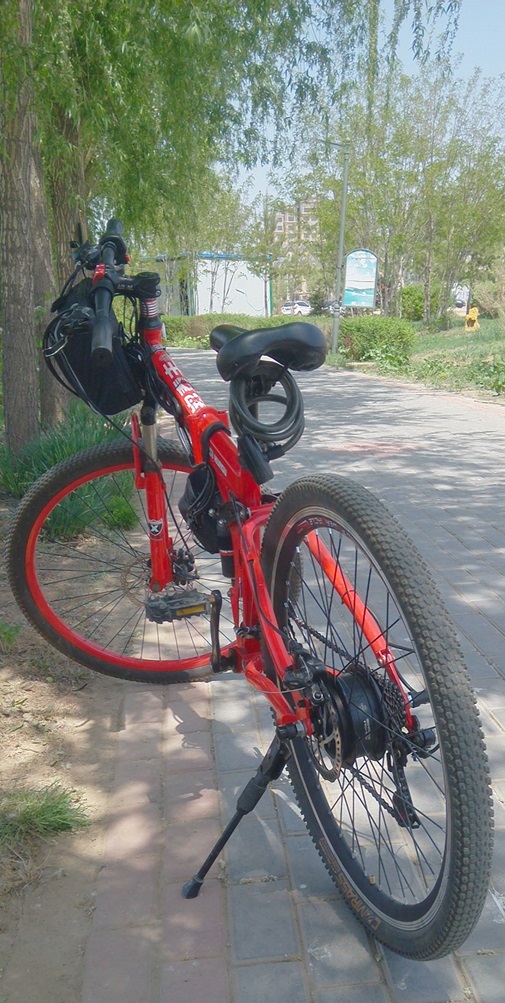

The motor can be front wheel drive or rear wheel drive, the difference is the mounting width, and the rear drive motor has a mount for the freewheel.

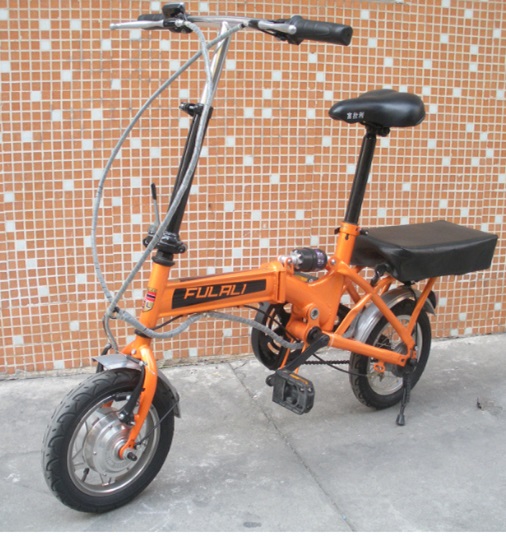

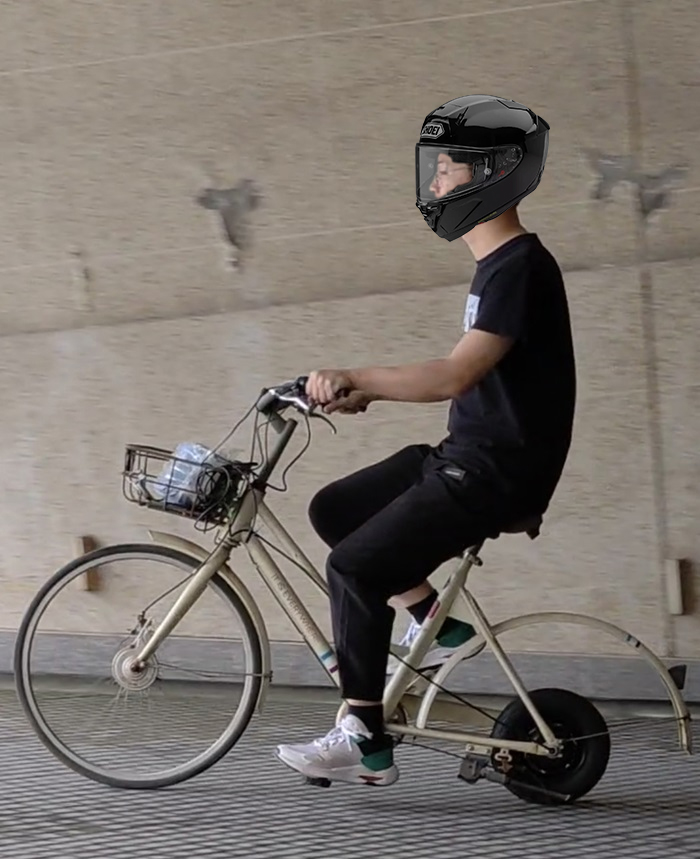

The motor with rim, we have it for the 12 inch tire, 14 inch tire, and 16 inch tire,
