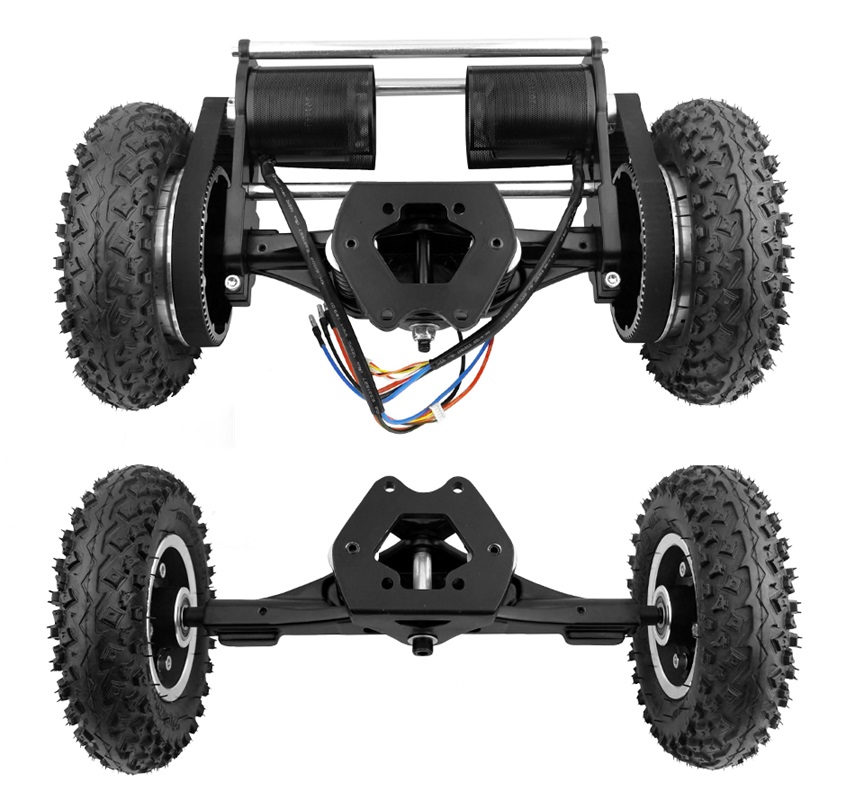

8 Inch Wheel Electric Skateboard Belt Drive Kit
1). This kit is for the mountain skateboard, its weight is about 8kg, and it supports max 100kg.
———-
2). The motor is 1650W each, the tire is 8-inch, its max speed can be about 40km/h,
———-
3). This working voltage is rated 36V that max voltage is about 42V, I recommend a 36V lithium battery and its BMS rated current is 50A or more.
———-
4). We supply the remote control and battery for this kit.
———-
5). 4WD is available.
———-
6). 6-inch wheel is available.

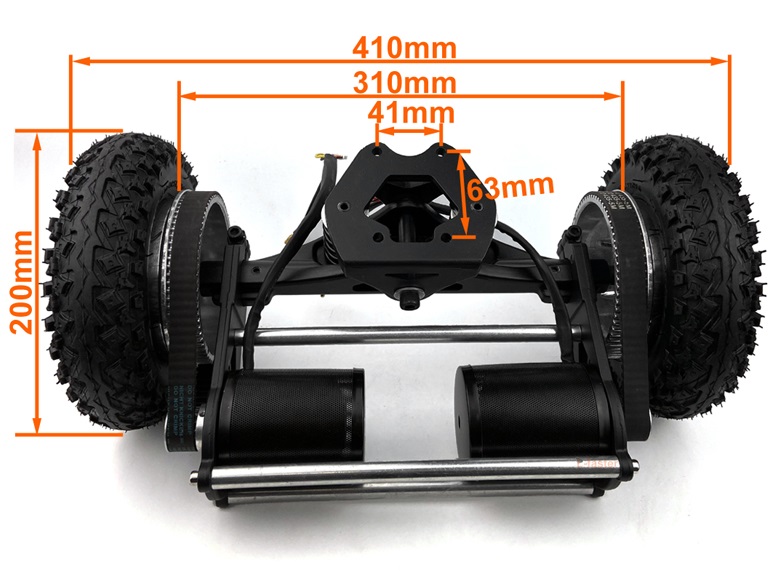

Electric power truck:
Equipped with dual brushless motors, featuring high-power output and strong torque performance. It is compatible with various unpaved surfaces.
With standard holes that fits most longboard/off-road skateboard decks, no complex hole modification is needed for DIY assembly, making it easy for beginners to get started quickly.
Composed of the metal bracket, it has strong load-bearing capacity and impact resistance, suitable for the harsh usage environment of outdoor off-roading.

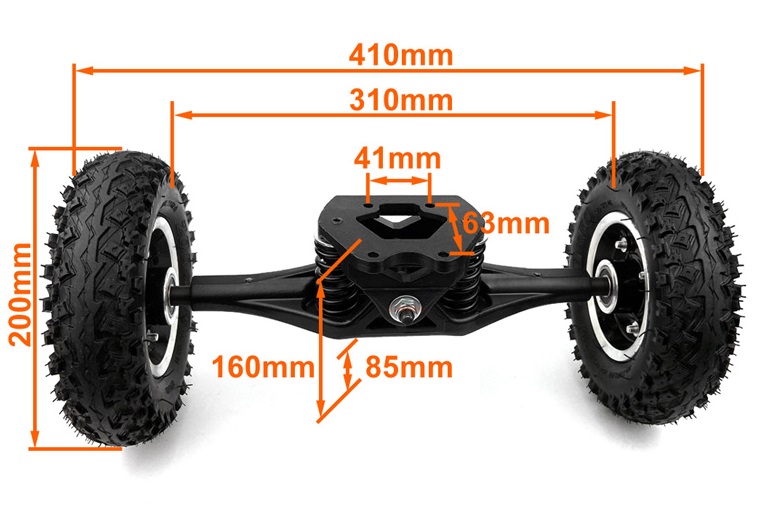

Unpowered truck:
This truck is without the motor bracket, and the wheels are without the pulley.
Others are the same as the electric power truck.
Other Necessary Components
Skateboard deck, motor controller, wireless remote, battery.

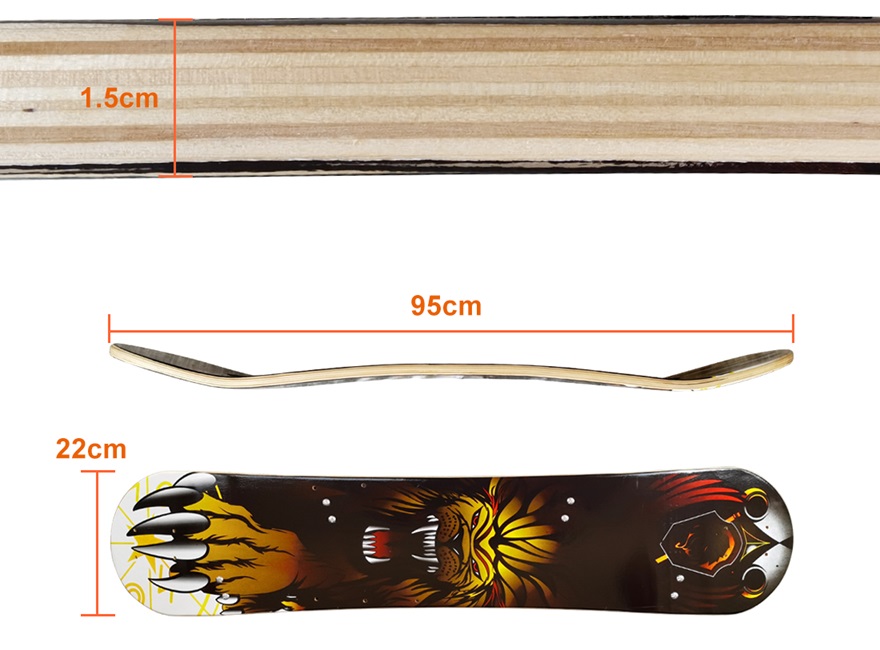

Skateboard deck:
This deck material is 10-layer bamboo.
This deck weight is about 3kg, and it supports max 100kg.
Electric 2WD remote control:
Belt drive controller spec:
Voltage: 10S (36V), can be 6S (22V) and 7S (25V).
Rated current: 30A
Maximum current: 100A
Maximum speed: 8000 RPM
Hall sensor and hall sensorless are all ok.
The remote can control the motors to drive forward, backward, and brake.

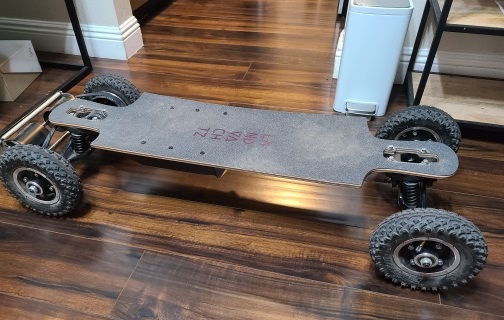

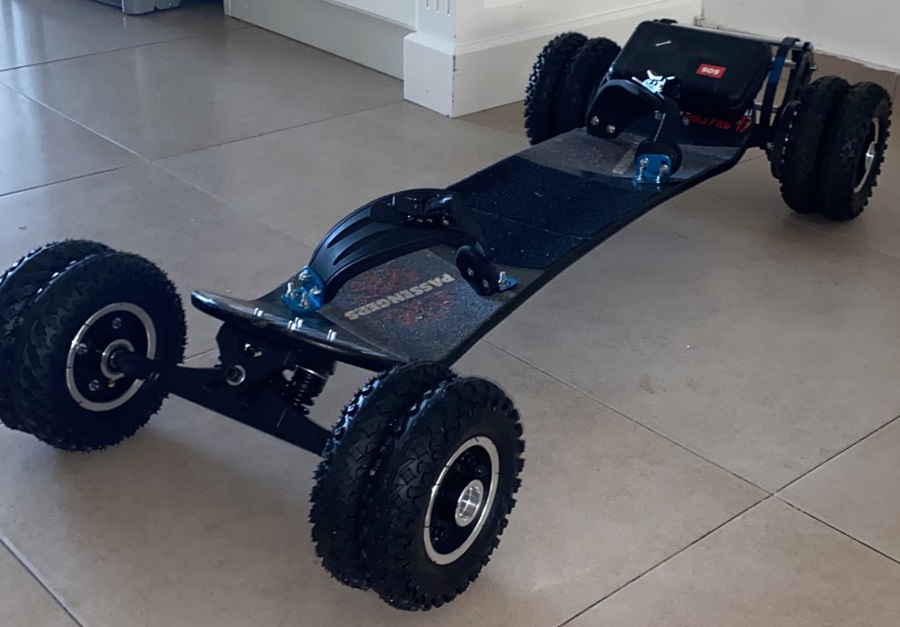

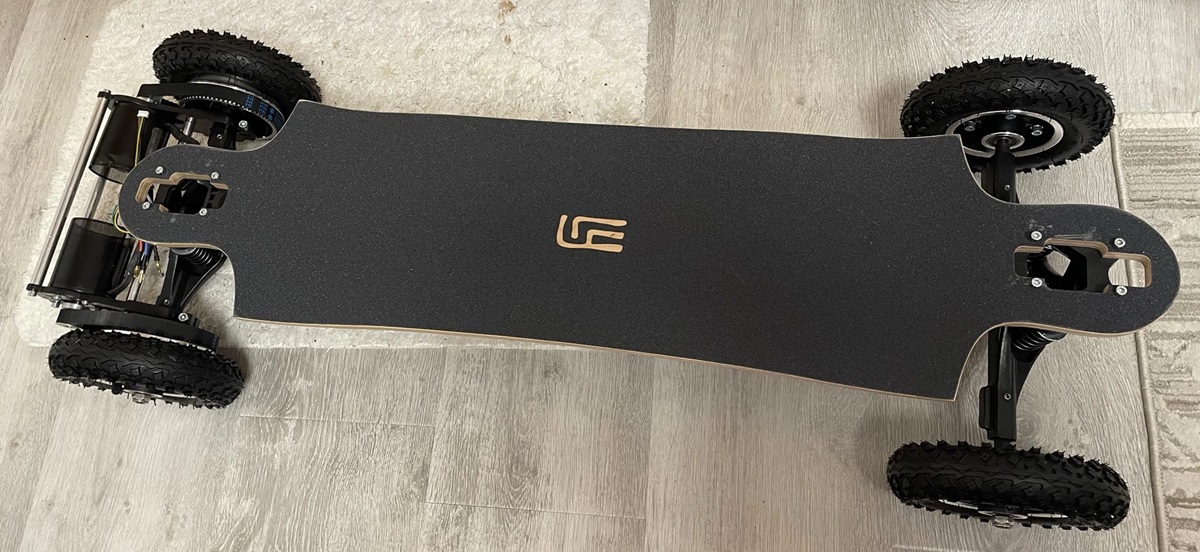

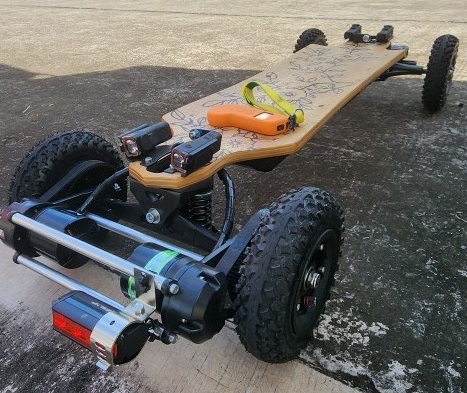

Mounted for reference:
Different size options
The wheel size can be 6-inch, the tire can be solid or inflatable.
The truck size can be smaller for the flat board.
6 inch air wheel truck kit
Voltage:
Watt:
Speed:
Weight:
Gear Ratio:
Loading:
36V
2x 1650W
30km/h
6.5kg
1:5
100kg
6 inch solid wheel truck kit
Voltage:
Watt:
Speed:
Weight:
Gear Ratio:
Loading:
36V
2x 1650W
30km/h
6.5kg
1:5
100kg
74mm motor wheel truck kit
Voltage:
Watt:
Speed:
Weight:
Gear Ratio:
Loading:
36V
2x 250W
20km/h
2.8kg
None
70kg
90mm motor wheel truck kit
Voltage:
Watt:
Speed:
Weight:
Gear Ratio:
Loading:
36V
2x 350W
25km/h
4.3kg
None
100kg

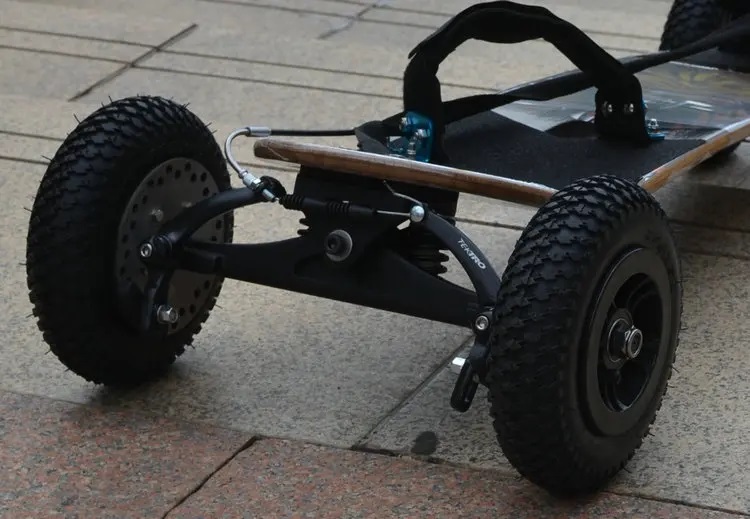

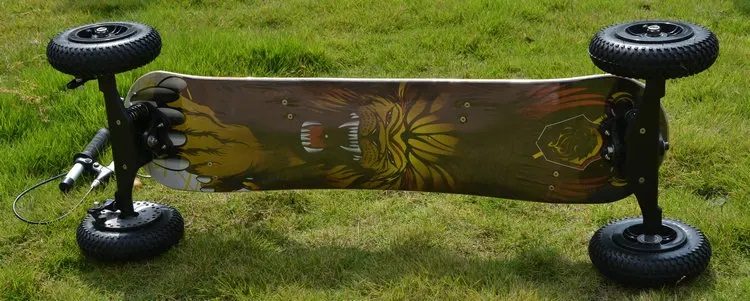

Unpowered brake truck
Unpowered brake truck
This wheel hub is ABS, the tire size is 8 inch.
This truck has the disc brake system, better for controlling the skateboard when going downhill on the mountain.

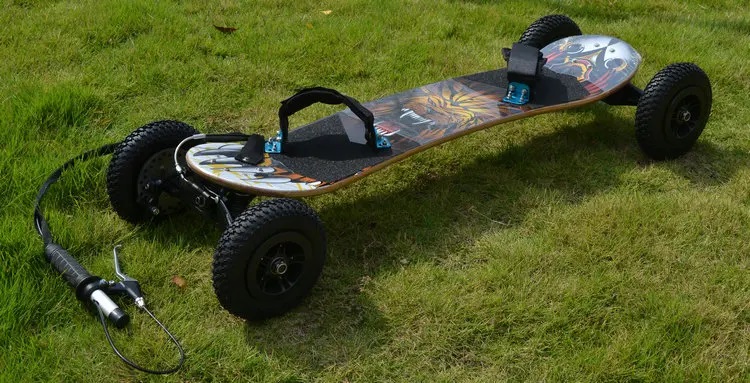

Mounted for reference:
