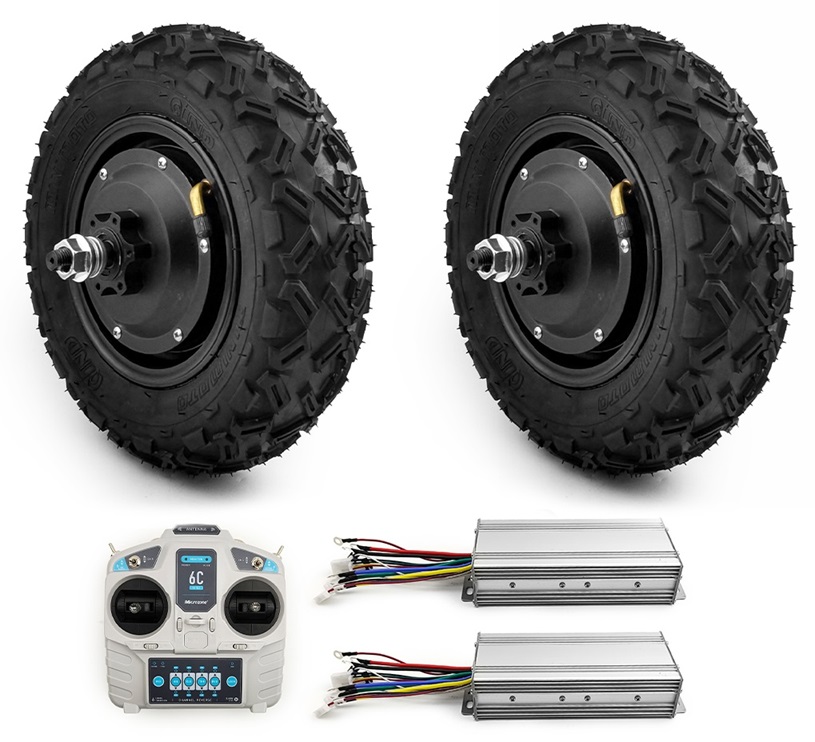

10 Inch Wheel Electric Cart Hub Motor Drive Kit
1). This kit is for the low-speed vehicle, the motor speed is slow (max 20km/h), but its torque is high, so it is not good for the high-speed project.
If you do not know what motor you need to use, please feel free to ask me.
———-

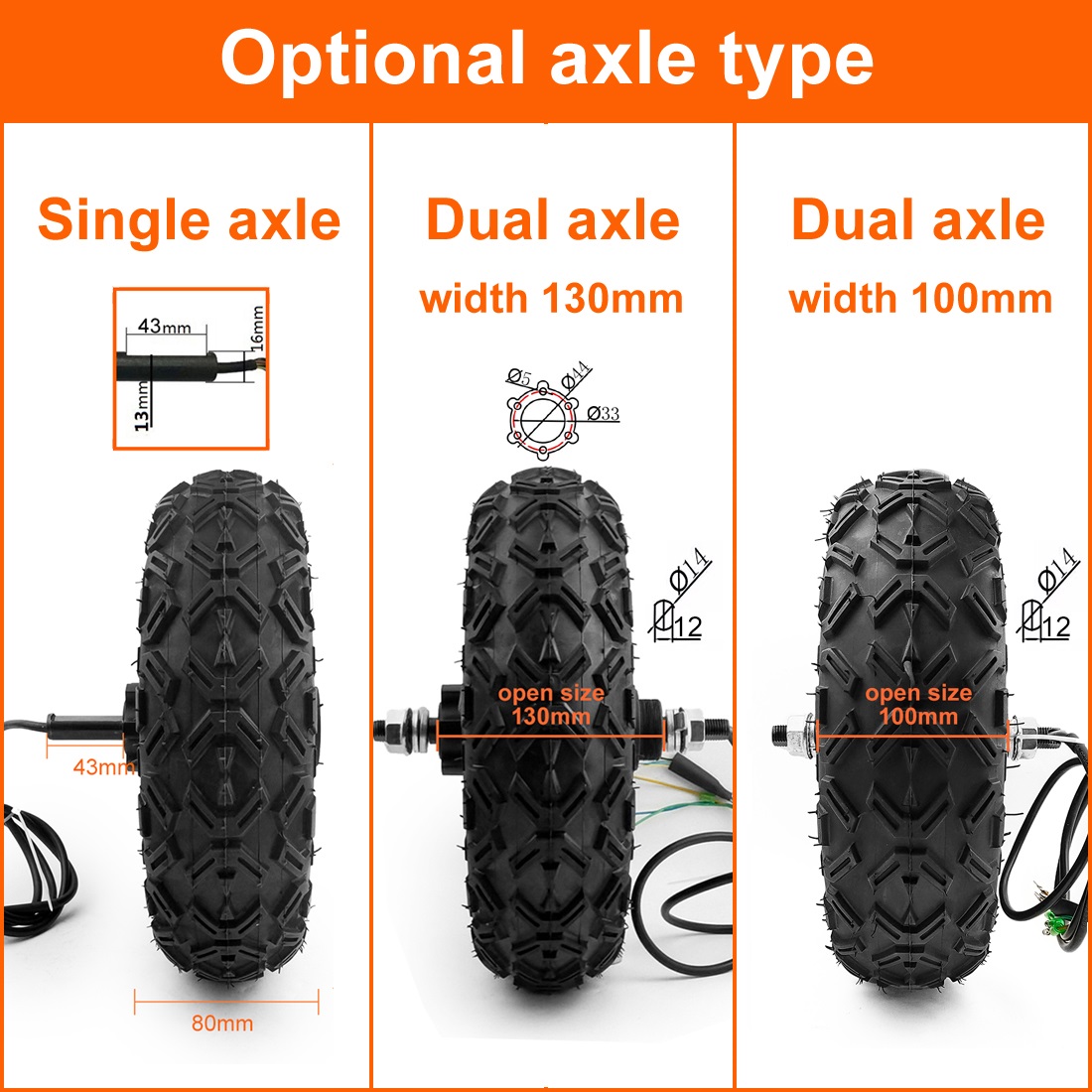

2). The motor is 350W each, the kit’s total power is 700W, the tire is 10-inch, its outer diameter is about 280mm, and width is about 80mm, the axle has 3 types: single axle, dual axle 130mm, and dual axle 100mm.
———-
3). This motor has gears inside, the wheel can run max 20km/h, and the kit’s loading weight is 200kg.
———-
4). The working voltage can be 24, 36V, and 48V, the difference is the working current, if you want to use longer, I recommend 36V and 48V.
———-
5). This kit does not include a battery, you need to get the battery separately, the lead acid battery and the lithium battery are all ok, and the battery capacity I recommend 20Ah or more.
———-
6). The wireless remote can control the motors to drive forward, backward, turn left, right, and cruise.
The one-hand remote has a small li-battery inside that is rechargeable.
The two-hands remote uses 4pcs AA battery cell that is not included.
———-
7). The throttle kit can control the motors to drive forward and backward only, it can not turn, please confirm this.
———-
8). The bracket for the single axle motor is available.
———-
9). 4WD and 6WD are all ok.

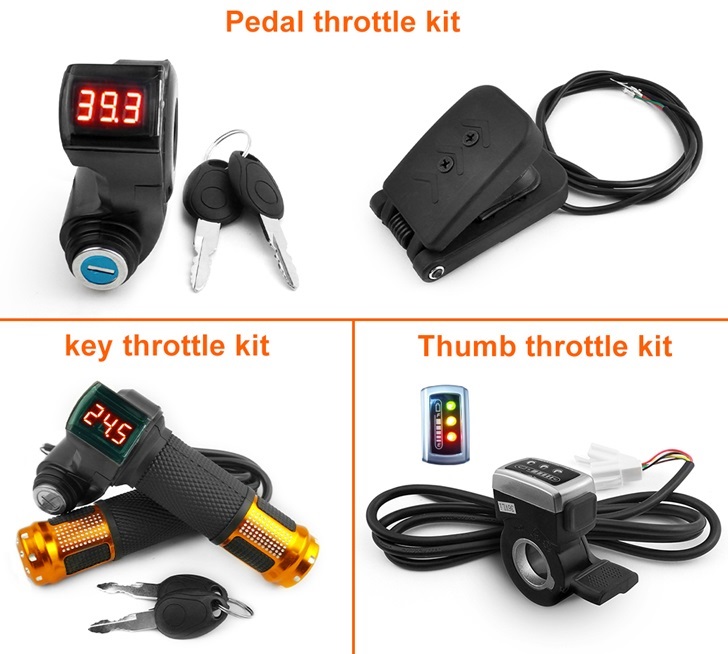

Wired throttle:
It can be a pedal throttle, a handle throttle, or a thumb throttle, this depends on your project.
The mounting hole diameter is 22mm.
The throttle can be with the key switch or button switch, and the battery voltmeter or indicator lights.
The motor speed can be variable with the throttle.
This throttle can control the motor to drive forward and backward (if with a reverse switch), but can not control the motor to turn left and right.

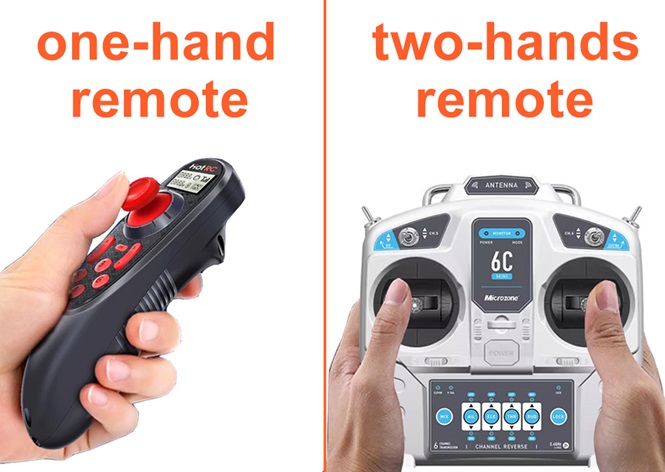

Wireless remote:
The wireless remote can control the motors to go forward, backward, turn left, right, and cruise.
The one-hand remote has a small li-battery inside that is rechargeable.
This receiver has 2 switches built in, you can connect the electric part like a light to the switch, then turn on/off the part with this remote.
The two-hand remote uses 4pcs AA battery cells that are not included.
This remote has a high/low speed mode.
This receiver has 3 switches built in, you can connect the electric part like a light to the switch, then turn on/off the part with this remote.
Bracket for single axle type:
This bracket material is steel, it supports 100kg each.
The steering type bracket is available.
Bracket for dual axle type:
This bracket material is steel, the thickness of the plate is 5mm.
This bracket is for our brushless hub motor wheel that has the axle flat space 10mm or 12mm.
You can weld the plate on your cart frame, or just fix it with some M6 bolts, the diameter of the 4 mounting holes is 7mm.
Different wheel size options
Current wheel size is 10 inch, and we can supply 4-inch to 16-inch.
The gearless motor is good for high-speed project, and the geared motor is good for low-speed project.
Geared motor
The geared motor is low-speed but high torque, it is good for low-speed project.
5 inch gear motor
Model:
Voltage:
Watt:
Speed:
Current:
Torque:
Loading:
Weight:
Gear Ratio:
LFD5G
24V / 36V
200W
7km/h
12A / 8A
17N.m
100kg
2.4kg
1:4
6.5 inch gear motor
Model:
Voltage:
Watt:
Speed:
Current:
Torque:
Loading:
Weight:
Gear Ratio:
UU65G
24V / 36V / 48V
350W
10km/h
18A / 13A / 10A
44N.m
200kg
3.6kg
1:5
8 inch gear motor
Model:
Voltage:
Watt:
Speed:
Current:
Torque:
Loading:
Weight:
Gear Ratio:
UU8G
24V / 36V / 48V
350W
10~20 km/h
18A / 13A / 10A
50N.m
200kg
4.8kg
1:5
13 inch gear motor
Model:
Voltage:
Watt:
Speed:
Current:
Torque:
Loading:
Weight:
Gear Ratio:
UU13GG
24V / 36V / 48V
500W
9~14 km/h
40A / 30A / 23A
90N.m
200kg
7.1kg
1:5
14 inch gear motor
Model:
Voltage:
Watt:
Speed:
Current:
Torque:
Loading:
Weight:
Gear Ratio:
LFD14G
36V / 48V
500W
5~8 km/h
14A / 11A
60N.m
200kg
7.4kg
1:5
14.5 inch gear motor
Model:
Voltage:
Watt:
Speed:
Current:
Torque:
Loading:
Weight:
Gear Ratio:
LFD145G
24V / 36V / 48V
350W
7~14 km/h
15A / 10A / 8A
24N.m
100kg
5.4kg
1:4
15 inch gear motor (offroad tire)
Model:
Voltage:
Watt:
Speed:
Current:
Torque:
Loading:
Weight:
Gear Ratio:
UU15GO
24V / 36V / 48V
500W
10~16 km/h
40A / 30A / 23A
90N.m
200kg
7.6kg
1:5
15 inch gear motor (grass tire)
Model:
Voltage:
Watt:
Speed:
Current:
Torque:
Loading:
Weight:
Gear Ratio:
UU15GG
24V / 36V / 48V
500W
10~16 km/h
40A / 30A / 23A
90N.m
200kg
7.7kg
1:5
16 inch gear motor (air tire)
Model:
Voltage:
Watt:
Speed:
Current:
Torque:
Loading:
Weight:
Gear Ratio:
UU16G
36V / 48V
500W
15~20 km/h
30A / 23A
60N.m
200kg
7.8kg
1:5
16 inch gear motor (solid tire)
Model:
Voltage:
Watt:
Speed:
Current:
Torque:
Loading:
Weight:
Gear Ratio:
LFD16G
36V / 48V
800W
6~8km/h
30A / 20A
60N.m
200kg
10.3kg
1:5
Gearless motor
The gearless motor is high-speed but low torque, it is good for high-speed project.
4 inch gearless motor
Model:
Voltage:
Watt:
Speed:
Current:
Torque:
Loading:
Weight:
Gear Ratio:
LFD4
24V / 36V
200W
15~20 km/h
12A / 7A
3.3N.m
70kg
1.6kg
None
5 inch gearless motor
Model:
Voltage:
Watt:
Speed:
Current:
Torque:
Loading:
Weight:
Gear Ratio:
LFD5
24V / 36V
200W
15~20 km/h
12A / 7A
3.3N.m
70kg
1.9kg
None
6.5 inch gearless motor
Model:
Voltage:
Watt:
Speed:
Current:
Torque:
Loading:
Weight:
Gear Ratio:
LFD65
24V / 36V / 48V
350W
18~36km/h
14A / 9A / 7A
14N.m
70kg
2.7kg
None
6.5 inch gearless motor (single axle)
Model:
Voltage:
Watt:
Speed:
Current:
Torque:
Loading:
Weight:
Gear Ratio:
HY65
36V
350W
25 km/h
9A
7N.m
50kg
1.8kg
None
6.5 inch gearless motor
Model:
Voltage:
Watt:
Speed:
Current:
Torque:
Loading:
Weight:
Gear Ratio:
WJ65
24V / 36V / 48V
350W
18~29km/h
14A / 9A / 7A
14N.m
70kg
3.4kg
None
8 inch gearless motor
Model:
Voltage:
Watt:
Speed:
Current:
Torque:
Loading:
Weight:
Gear Ratio:
TG8
24V / 36V / 48V
350W
20~30km/h
14A / 9A / 7A
11N.m
70kg
2.3kg
None
8 inch gearless motor
Model:
Voltage:
Watt:
Speed:
Current:
Torque:
Loading:
Weight:
Gear Ratio:
LFD8
24V / 36V / 48V
350W
25~45km/h
15A / 10A / 7A
14N.m
70kg
3.0kg
None
10 inch gearless motor
Model:
Voltage:
Watt:
Speed:
Current:
Torque:
Loading:
Weight:
Gear Ratio:
LFD10
24V / 36V / 48V
350W
18~36km/h
14A / 9A / 7A
14N.m
70kg
3.7kg
None

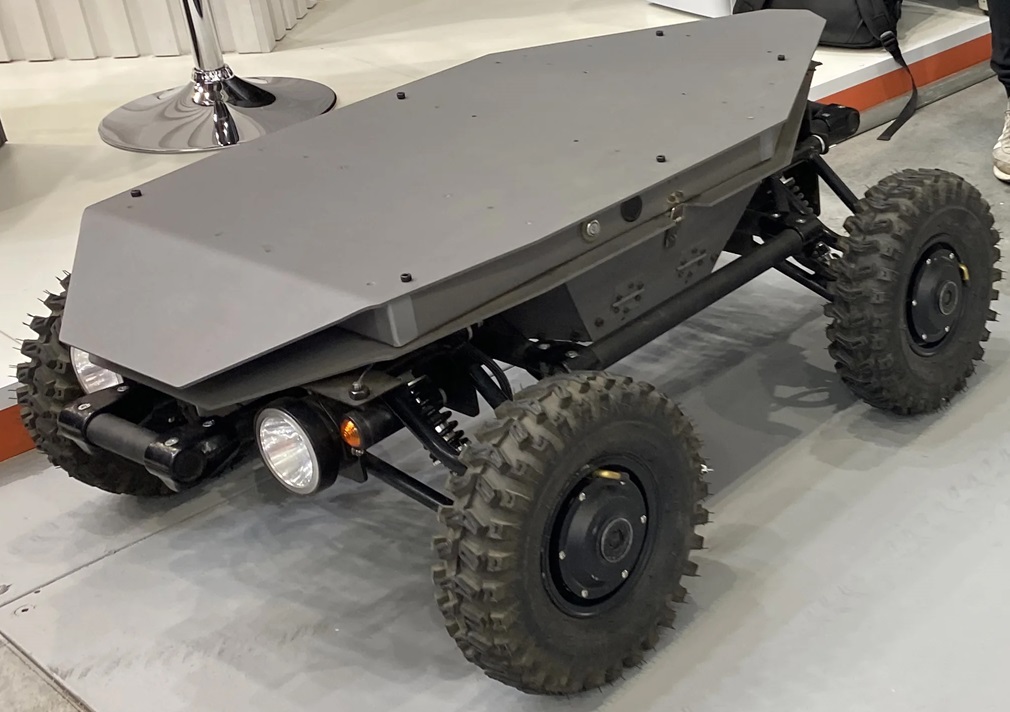

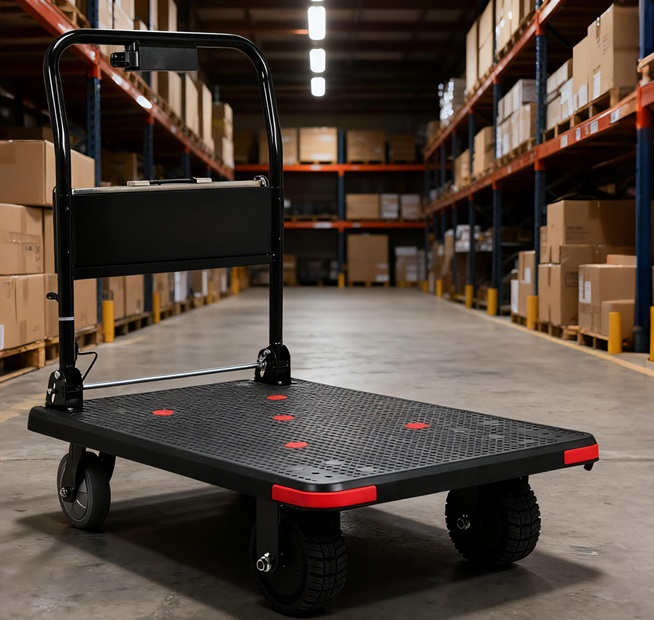

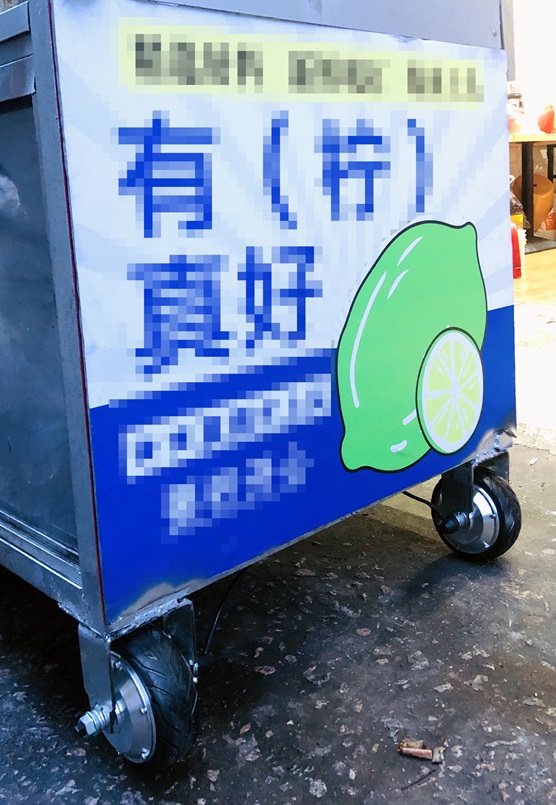

Mounted for reference:
