Electric Scooter Brushless Hub Motor Kit (58mm)
24V / 36V / 48V 180W

RETAIL PRICE
All the buyers should have experience to install it. If not, please do not buy it.

  1. Is it difficult to install the hub motor wheel to the scooter?
    cutting rear fork No, it will not be very difficult, just need to cut the fork and drill the axle hole, but you need to be patient to do this job.
  2. What battery is recommended for this kit?
    If you choose 24V kit, you need two 12V batteries, (lead acid or lithium), or one 24V battery.After they are linked together, the minimum capacity should >12AH.
    If you choose 36V kit, you need three 12V batteries, (lead acid or lithium), or one 36V battery.After they are linked together, the minimum capacity should >12AH.
  3. Is the kit include batteries?
    No, the kit includes all the parts you need except batteries to convert the bike into electric bike.You need to buy the batteries by yourself.
  4. Where should I mount the batteries ?

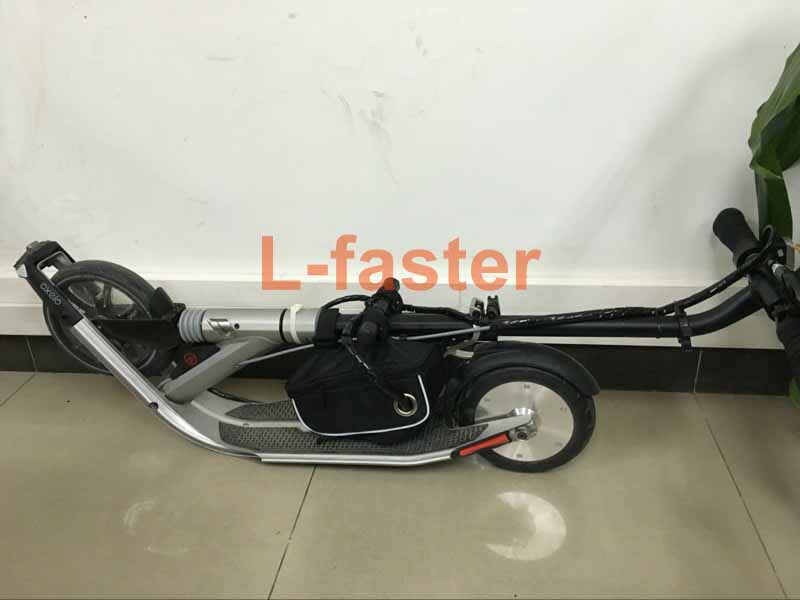

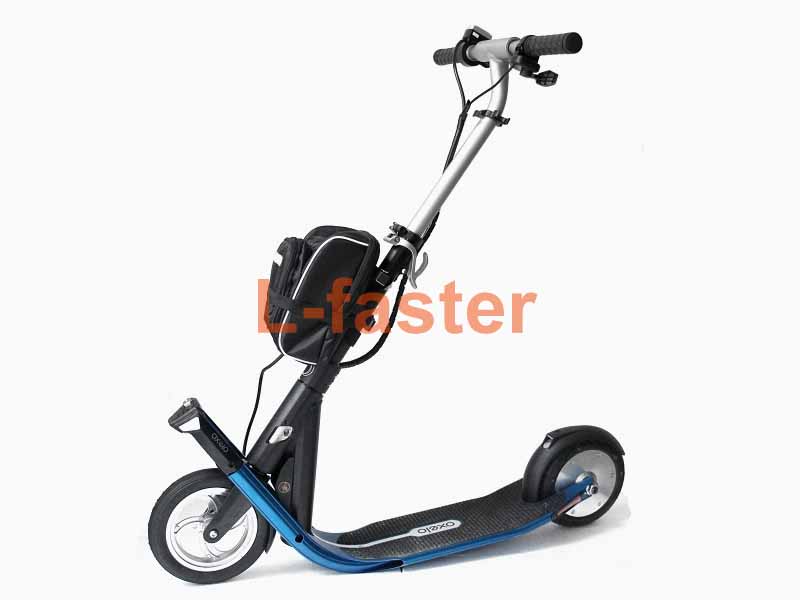

    This kit include a battery bag that you can put the battery into it and mount the bag on the scooter head. If you want to mount the bag like the scooter in above pictures, you will need a bag bracket, then please tell us, we can provide it too.
  5. Is the kit including a user manual?
    Yes, it includes an electric wire connection photos.
  6. Can this motor use disc brake?

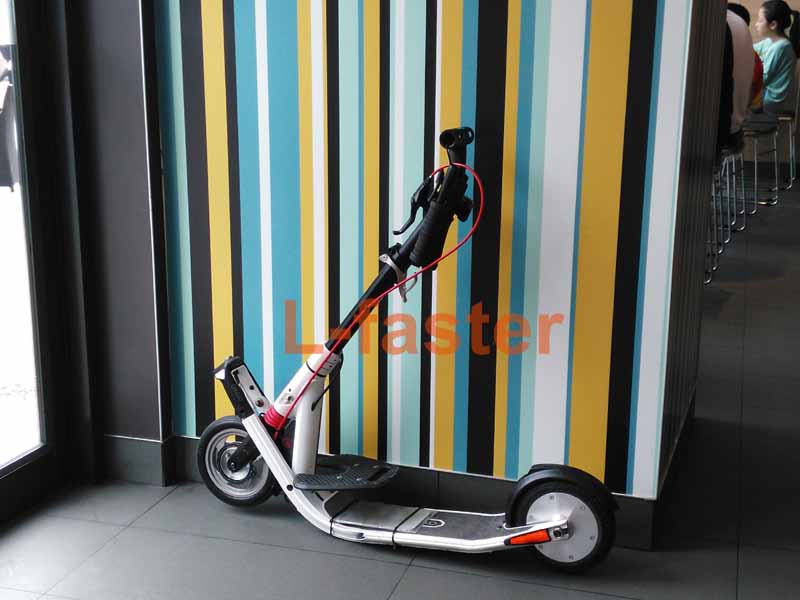

    This motor use electric brake and it can not use disc brake. OXELO Town 9 EF and Town 7 EF scooter can not use disc brake with hub motor kit. For other scooter model, please don’t hesitate to ask me.
  7. Why this motor has 3 wires only?
    This motor without hall sensor (5 thin wires), so it has 3 phase wires only.
    Hall sensor can make motor stable when motor start running, without hall sensor , the motor maybe shake 1 second when it start running,  but after that, it running same as the motor with hall sensor.
    But hall sensor is easy broken and after it broken, the motor will cann’t work normally, so that we give up hall sensor.

The kit includes:

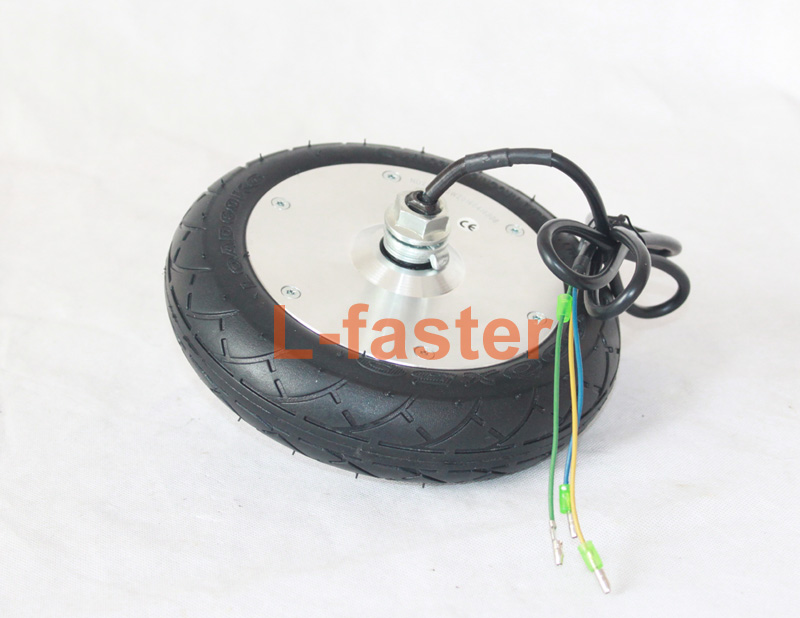

1.  1x 180W brushless hub motor

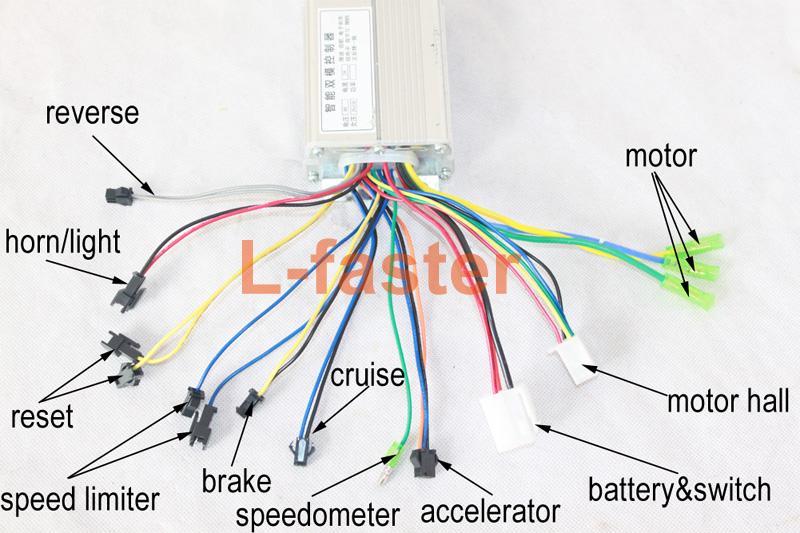

2.  1x Motor controller

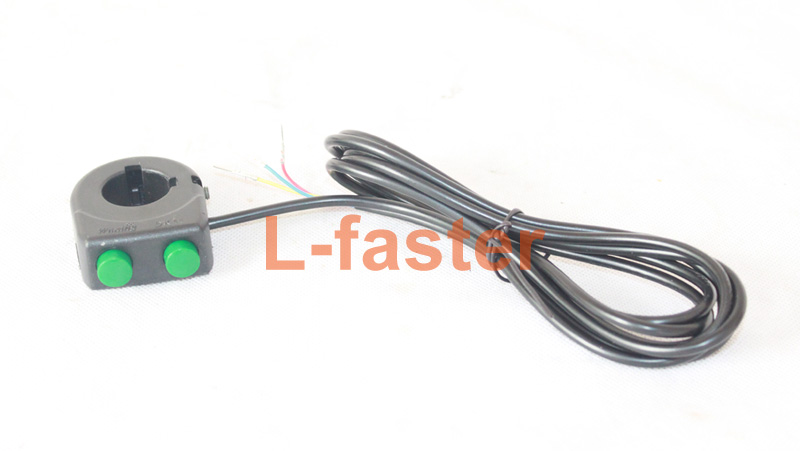

3.  1x Brake & cruise switch

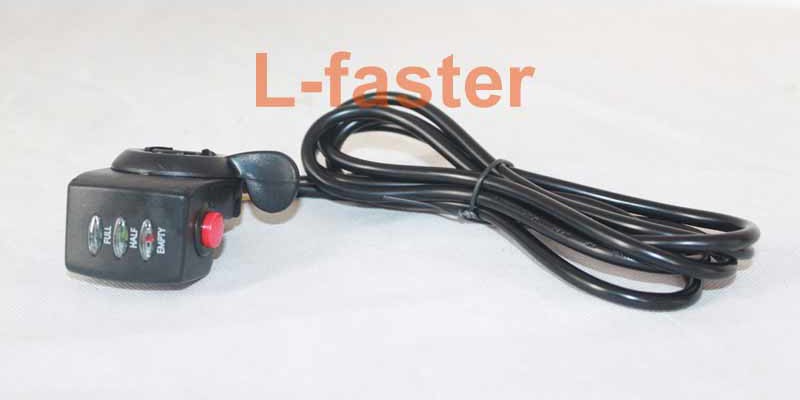

4.  1x Thumb accelerator

5.  1x Battery bag (just a bag, not battery)

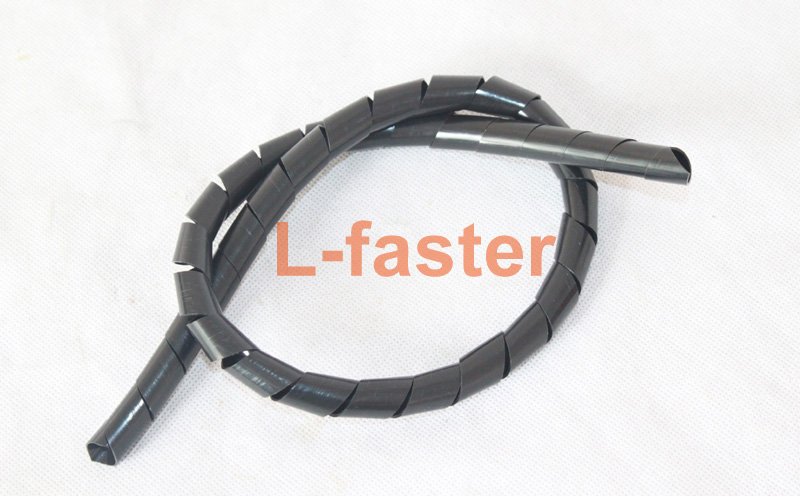

6.  1x Cable pipe & ribbon

Note: this kit without battery and battery charger .

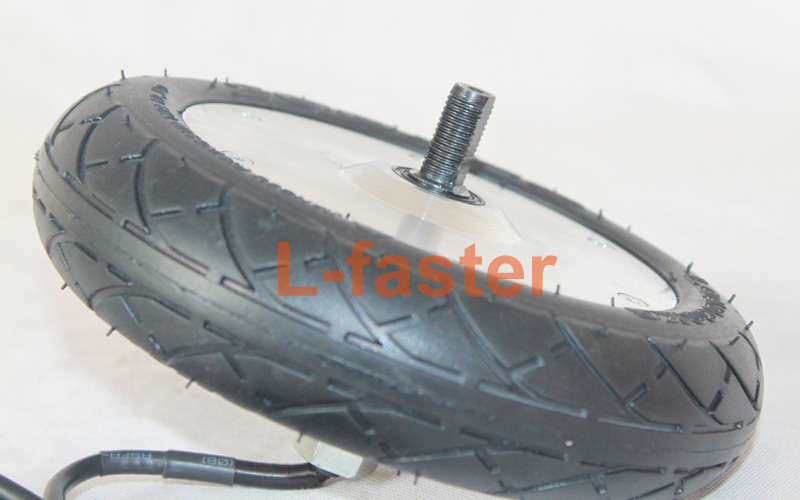

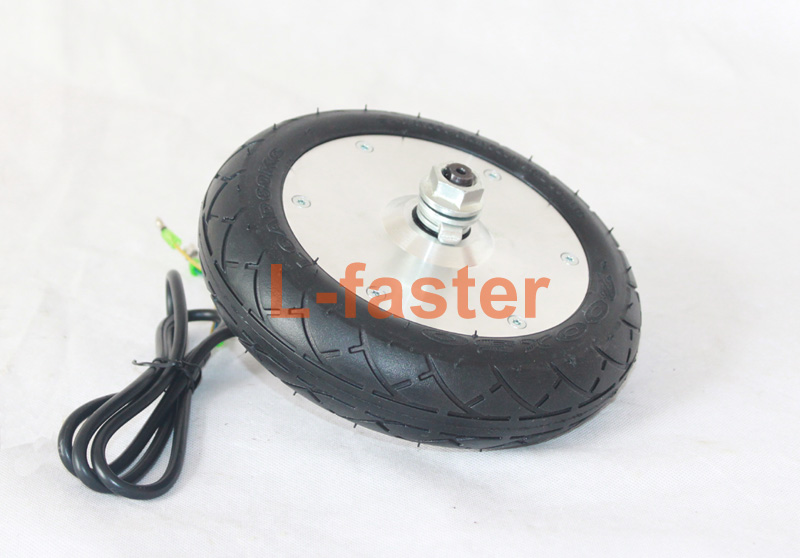

Motor specification

Model: L-ND02
Type: Gearless brushless hub motor without hall sensor
Size: 8 inch (tire 200 x 45)
Voltage: 24 / 36 / 48 Volt
Output: 180 Watt
Brake Type: E-brake
Speed: 500~800 Rpm
Rated Efficiency: ≥75%
Suitable for: E-scooter fork inside width more than 60mm
Net weight: 3 KG

8 inch electric scooter hub motor -drawing
