Electric Bike Brushless Hub Motor Kit (Quick Release)
36V / 48V 250W

RETAIL PRICE
All the buyers should have experience to install it. If not, please do not buy it.

  1. Is it difficult to install the hub motor to the wheel?
    No, it will not be very difficult but you need to be patient to mount the hub motor to the wheel.
  2. What battery is recommended for this kit?
    If you choose 36V kit, you need three 12V batteries, (lead acid or lithium), or one 36V battery.After they are linked together, the minimum capacity should >12AH and recommended>20AH
    If you choose 48V kit, you need four 12V batteries, (lead acid or lithium), or one 48V battery.After they are linked together, the minimum capacity should >12AH and recommended>20AH
  3. Is the kit include batteries?
    No, the kit includes all the parts you need except batteries to convert the bike into electric bike.You need to buy the batteries by yourself.
  4. Where should I mount the batteries ?
    We do not provide the battery box. But you can install it above the rear wheel on rear rack, or even make a box(need some DIY skills).You can design whether the batteries can take out or hard wired.
  5. Is the kit including a user manual?
    Yes, it includes an electric wire connection photos.
  6. What is the differences between disk brake hub motor and normal brake hub motor?
    The disk brake hub motor leave a place for you to install the disk brake, but the axle will be longer than the normal brake hub motor, you can still install normal brake if you choose the disk brake motor.If you choose normal brake hub motor, you cannot install disk brake, but the axle will be shorter.
  7. What is the differences between front and rear wheel hub motor kit?

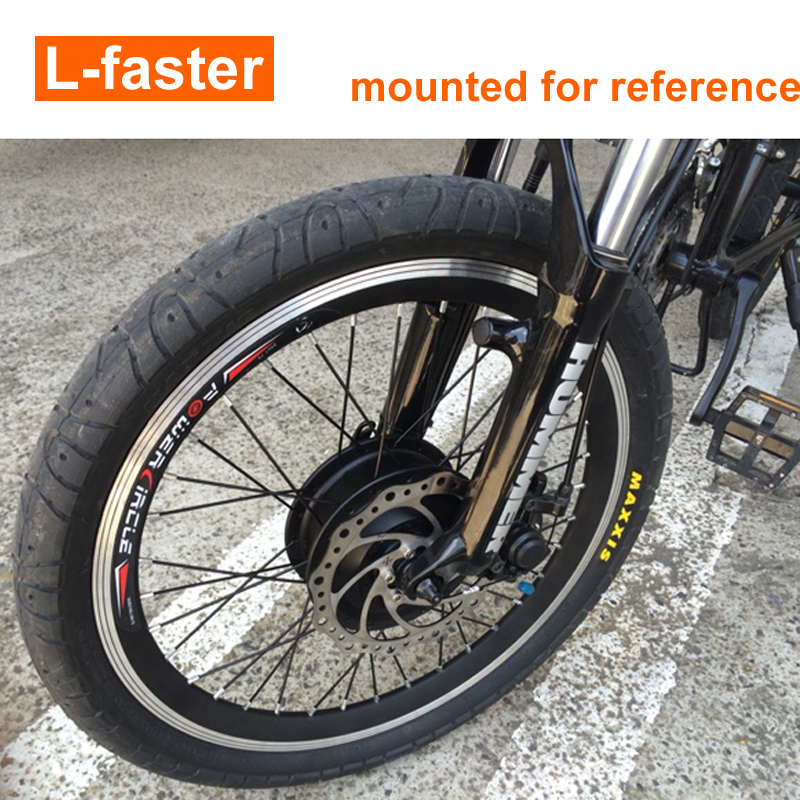

    If you choose the front wheel kit, the axle will be shorter and the electric wire will be longer and it will more easy to be installed as you just need to change the wheel.
    But if you choose the rear wheel hub motor, you maybe need to adjust the freewheel after install the motor wheel.

The kit includes:

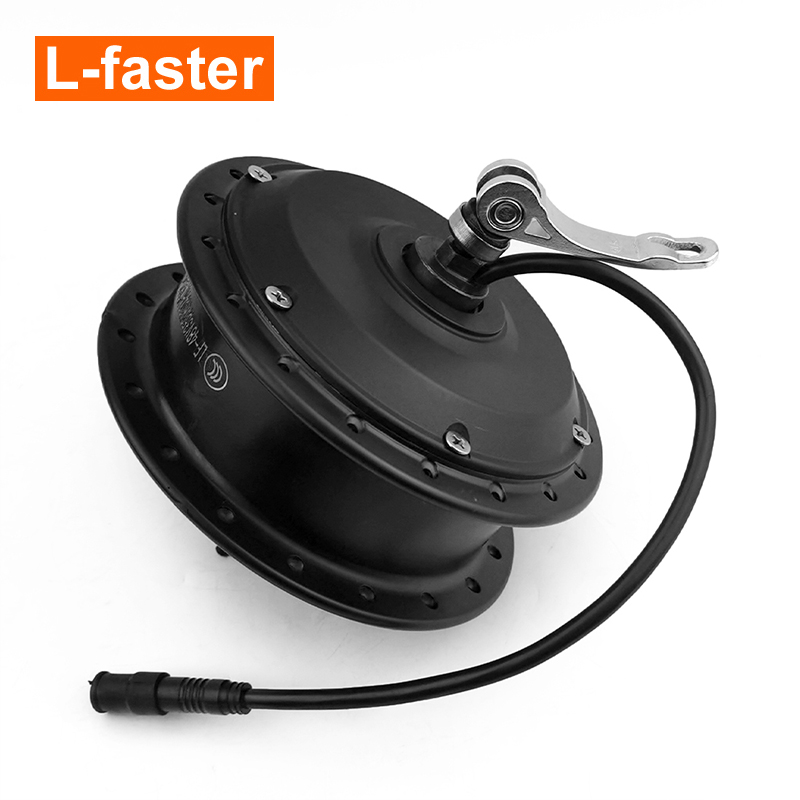

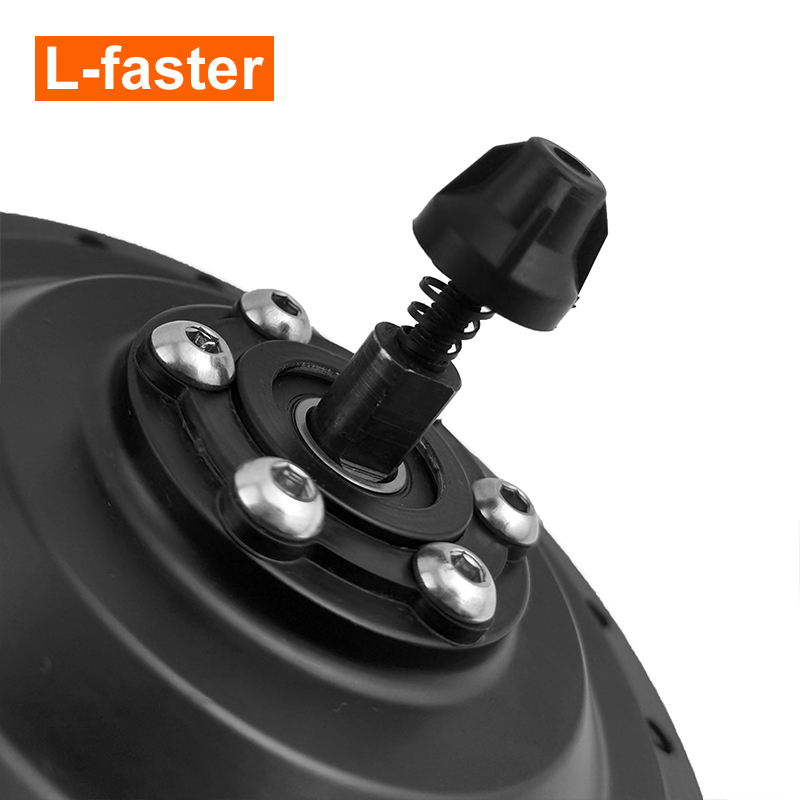

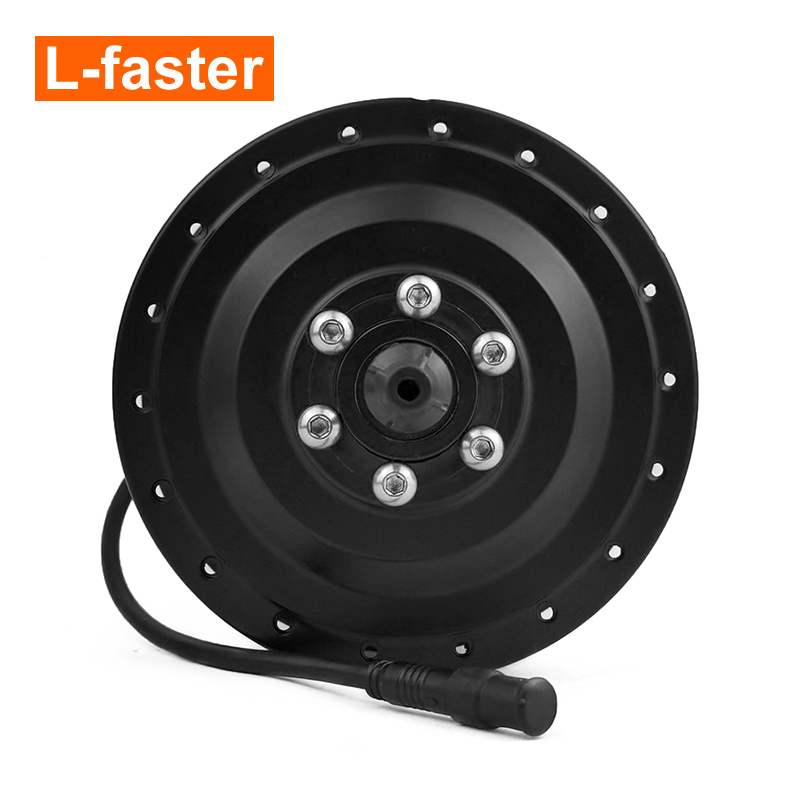

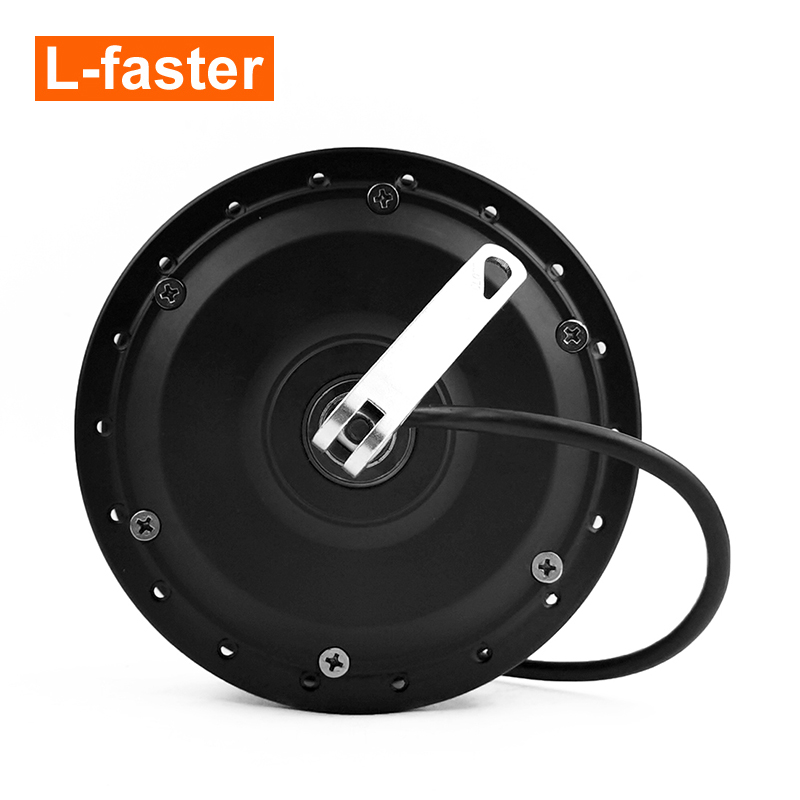

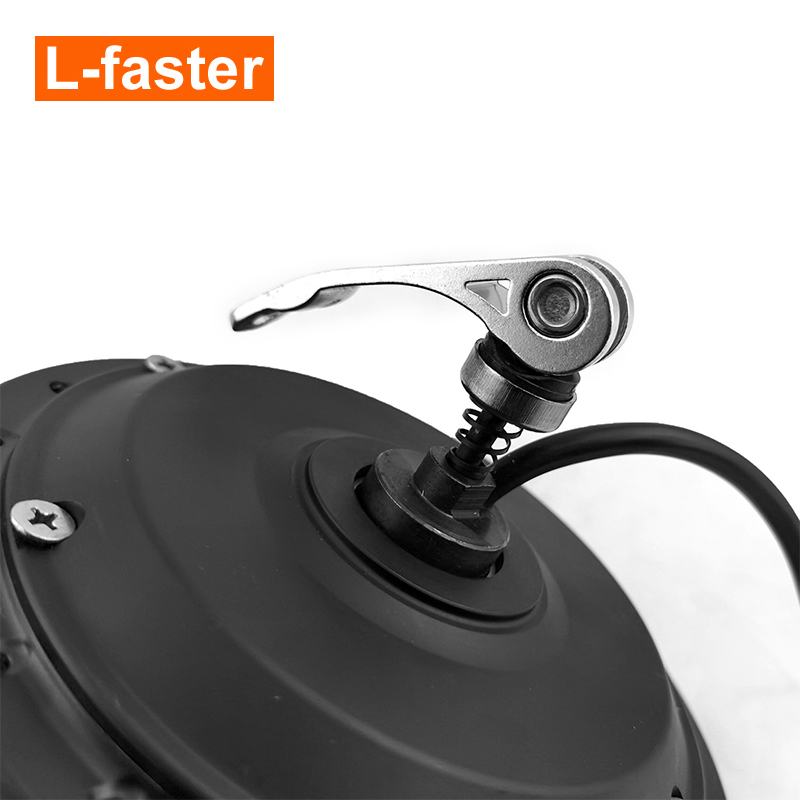

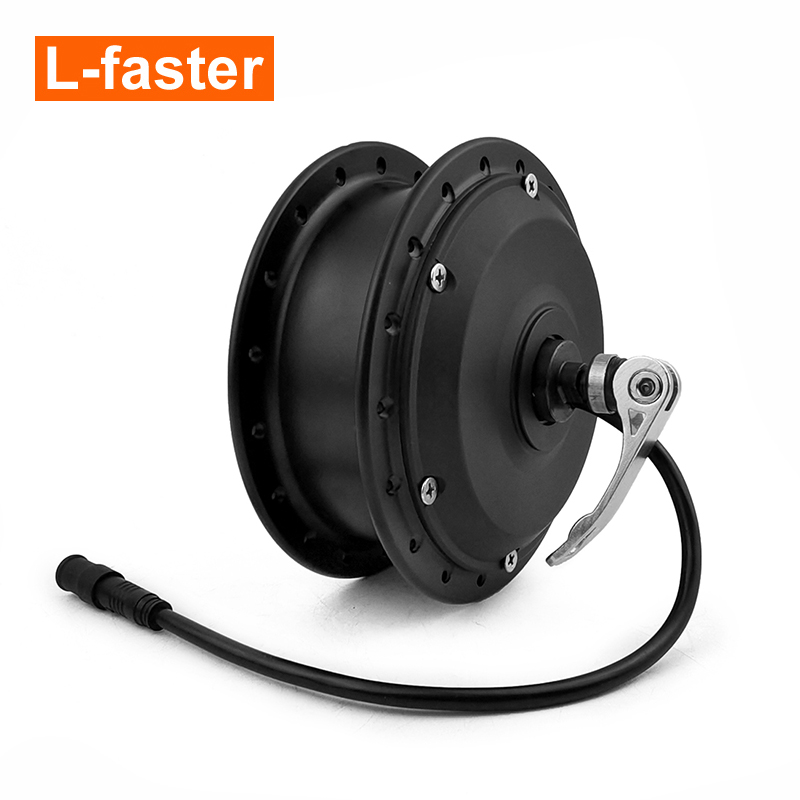

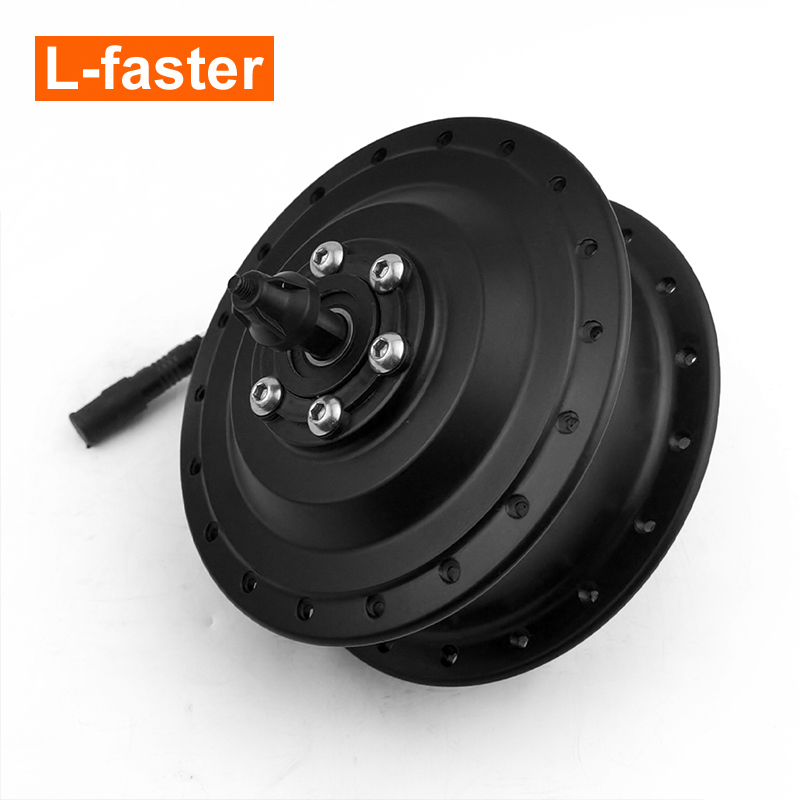

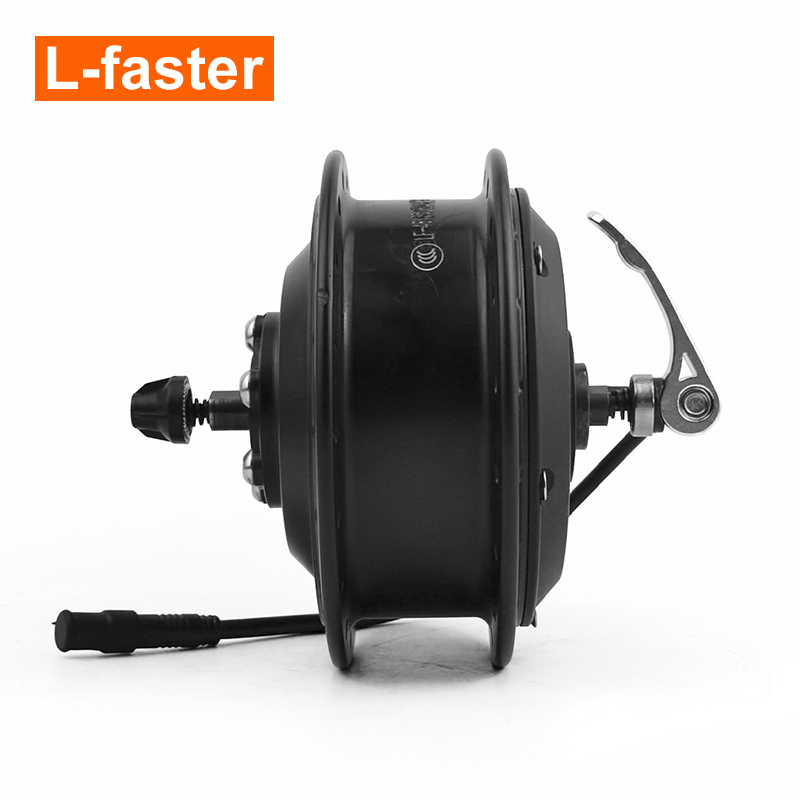

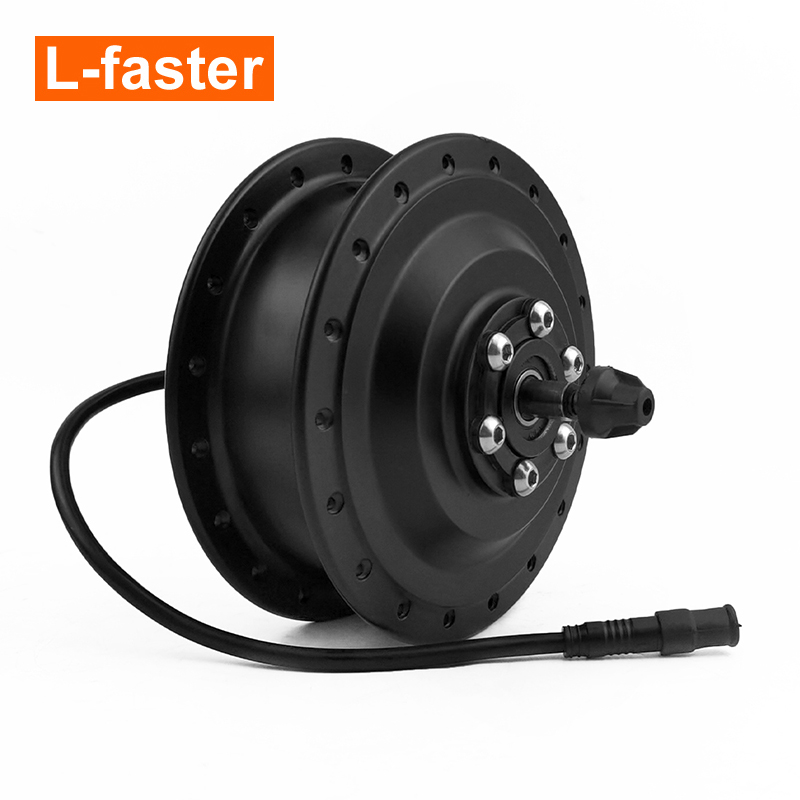

1. 1x 250W brushless hub motor with quick release (for front wheel)

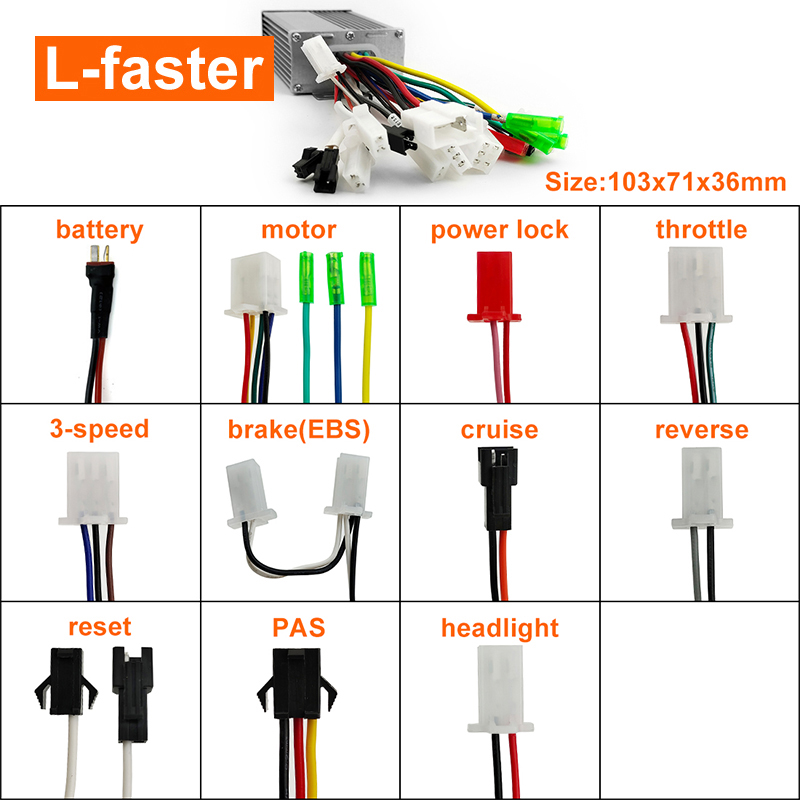

2. 1x Motor controller

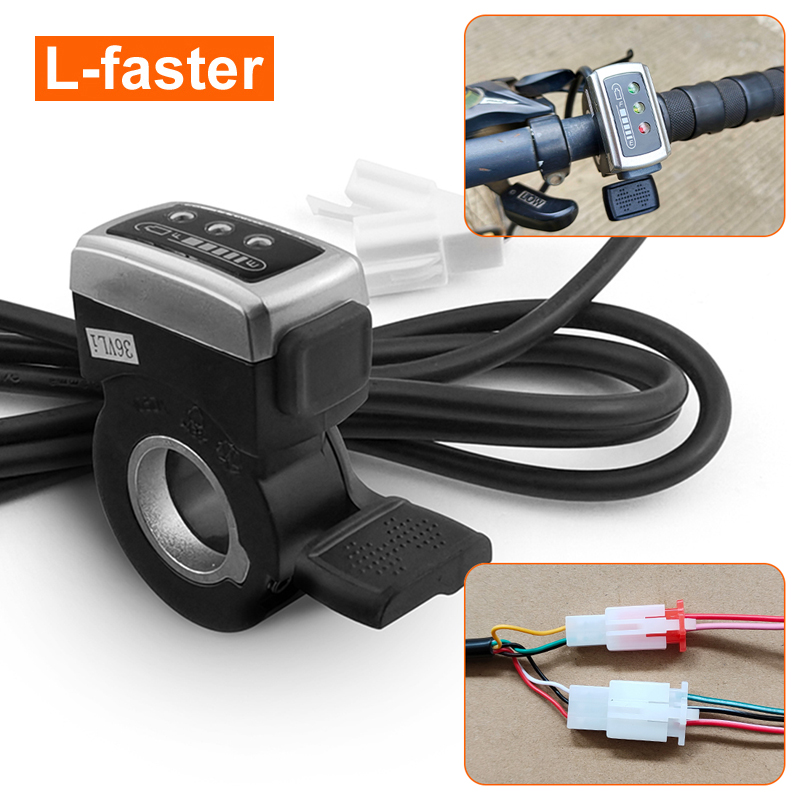

3. 1x Thumb accelerator

4. 1x Brake lever

5. 1x Pedal assist sensor

6. 1x Waterproof cable

Note: this kit without battery and battery charger .

Motor specification

Model: L-QB02-A
Voltage: 36 / 48 Volt
Output: 250 Watt
Brake Type: V brake / Disc brake
Spokes Holes: 36
Max Speed: 285~300 RPM
Rated Efficiency: ≥78%
Suitable for: 12″-28″ bike front fork inside width 100mm
Net weight: 2.8 KG

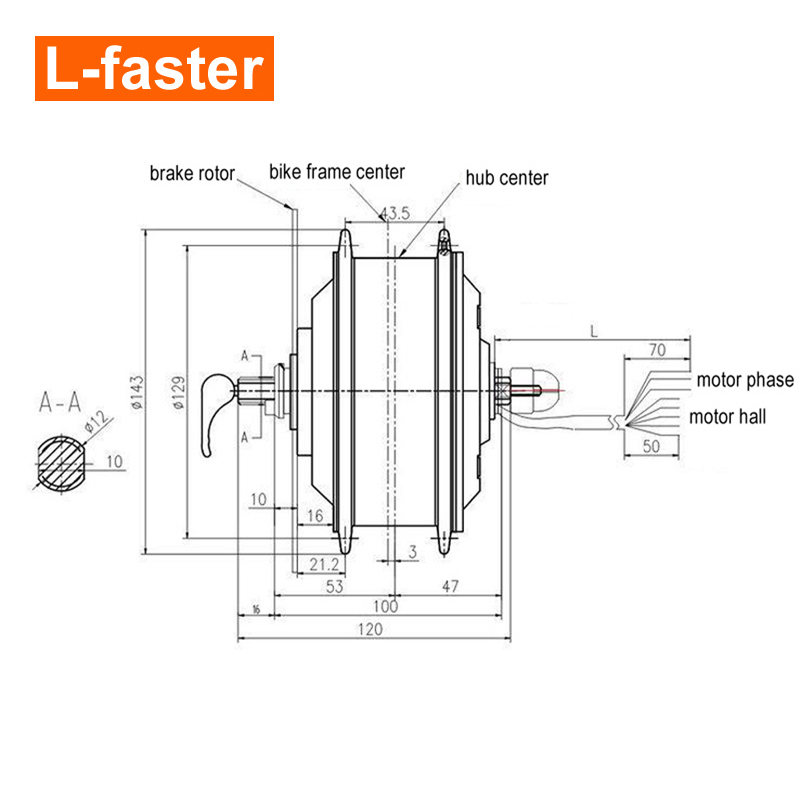

electric bike hub motor kit quick release motor -drawing
